Waterfront Project

DICT Port Project

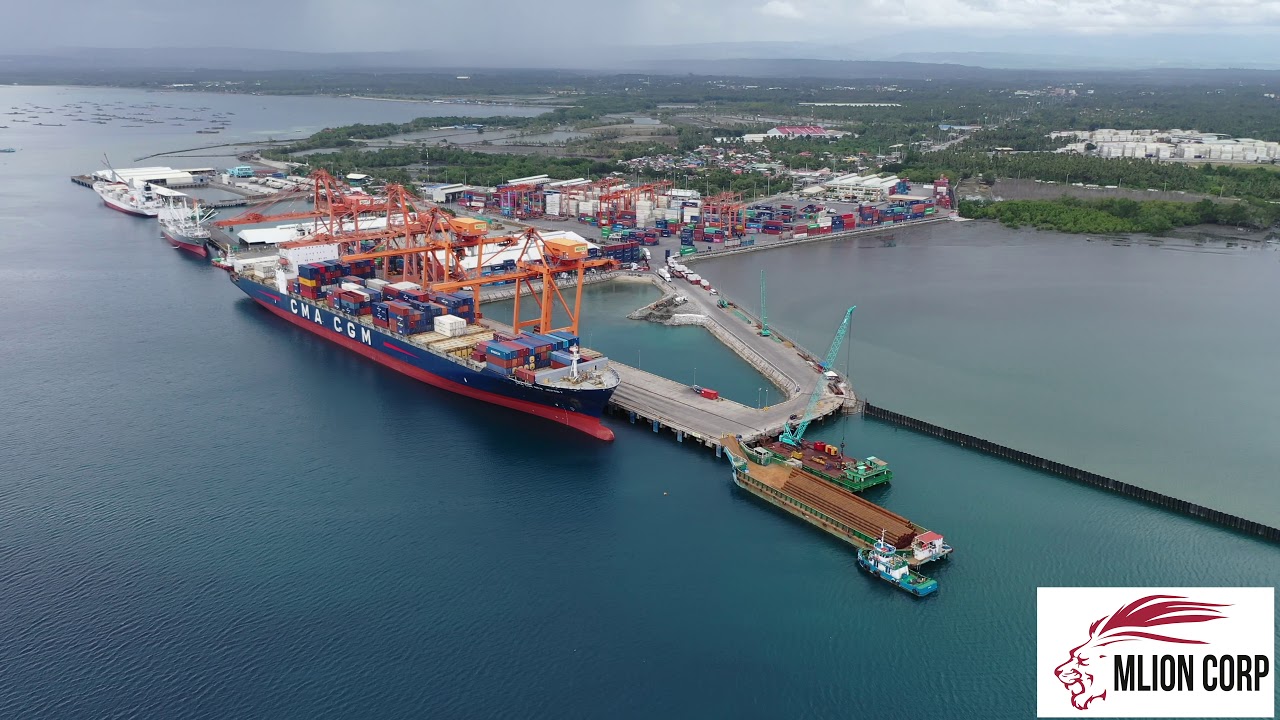

Mlion Corporation Pte Ltd worked closely with Davao International Container Terminal to develop their waterfront and extension of an extra berth. We delivered sheet piles for the reclamation and container stacking yard which was completed delivery in December 2019. After which Mlion fabricated long length steel pipe piles which will support the berth and its ship to shore cranes on the deck.

Project Info

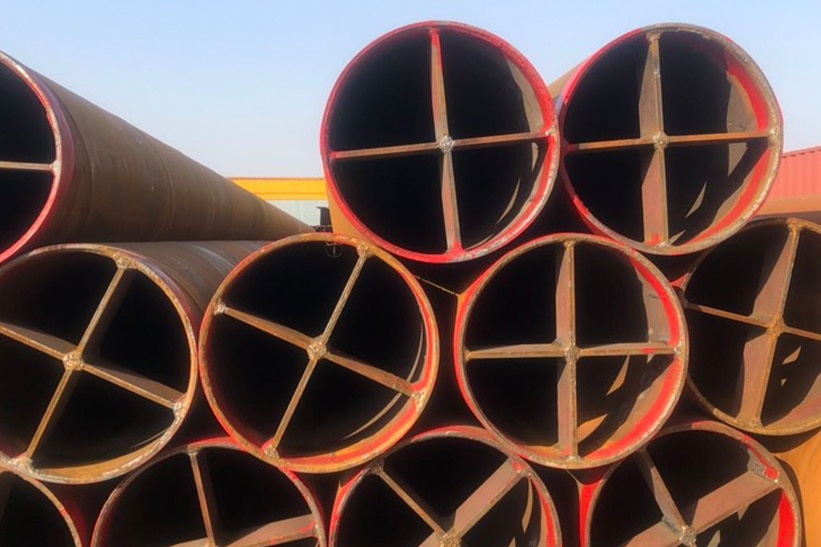

Working with the owner and consultant we recommended the steel grade to be S355JR instead of A252 Grade 2 to provide higher strength and greater corrosion allowance. Also a cross type pile shoes was used to provide greater piling toe strength.

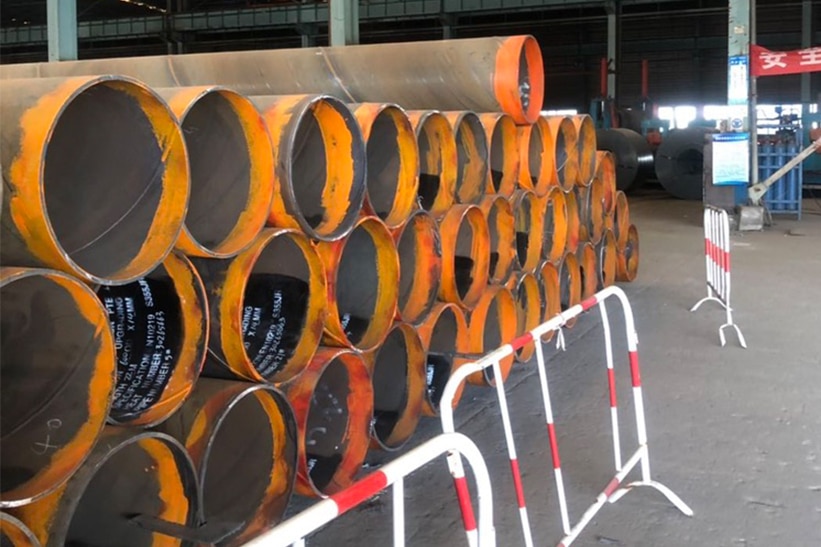

Pipes for the project were in the following sizes:
900mm x 14mm in lengths up to 48m
800mm x 14mm in lengths up to 42m
600mm x 14mm in lengths up to 40m

The pipes were delivered to the customer as per their piling schedule and tailored to the required delivery arrangement. Mlion worked closely with all parties to provide the smooth unloading and specific unloading sequence.

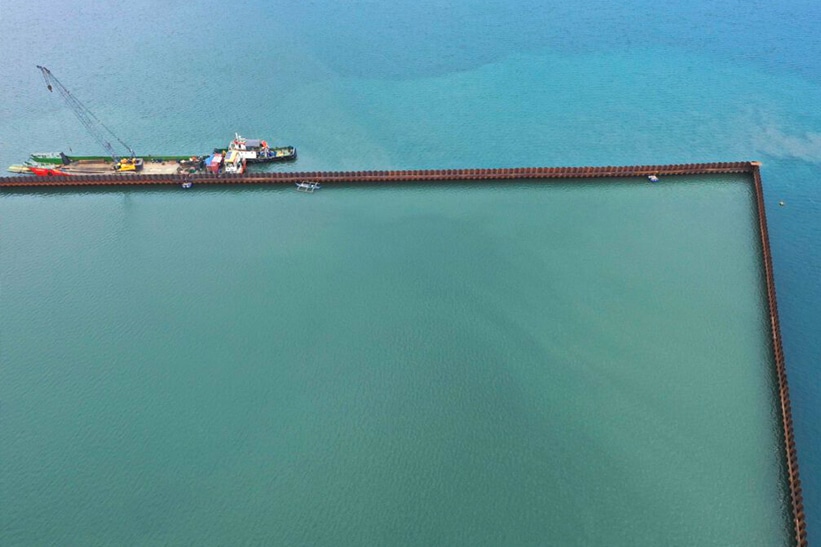

Mlion Corporation worked with Davao International Container Terminal (DICT) to provide sheet piles for their project. Design and discussions started from early 2019 and with consultant to provide the best possible solution for the project. MHZ sheet piles in pairs were painted and coated and delivered to site. The project required reclamation works to be done on an extension of their existing berth. Reclamation will prevent scouring from oncoming vessels when the pier is built.

Piles Supplied:

MHZ24-2 in 12m and 16m
MHZ20-1 in 11m / 12m / 14m / 16m
Coating of Sigmacover 850
CP1 Corner Piles for the project.

Project was piled by Maximus Structural in Davao.
