Crane Rails

Product introduction

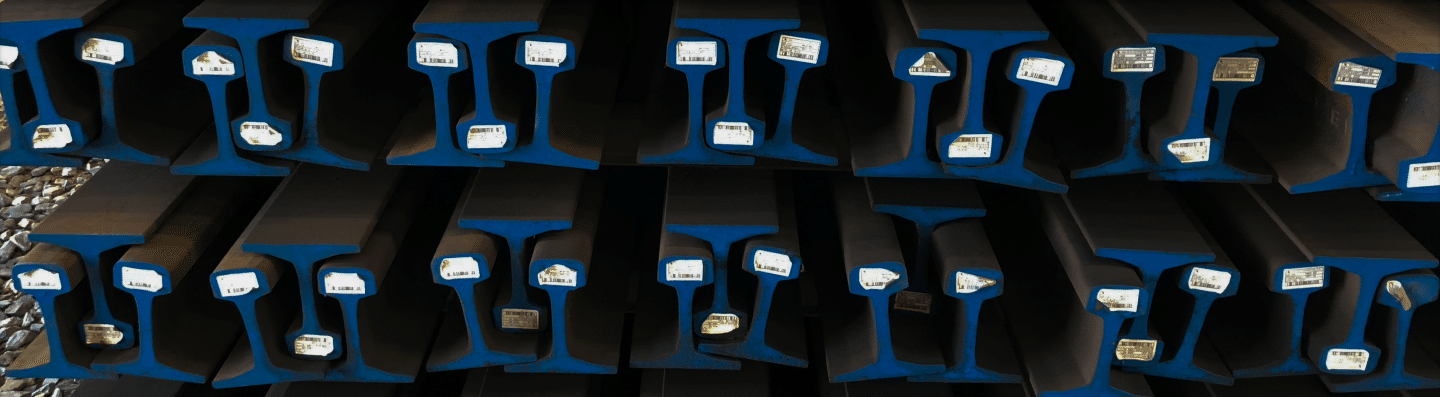

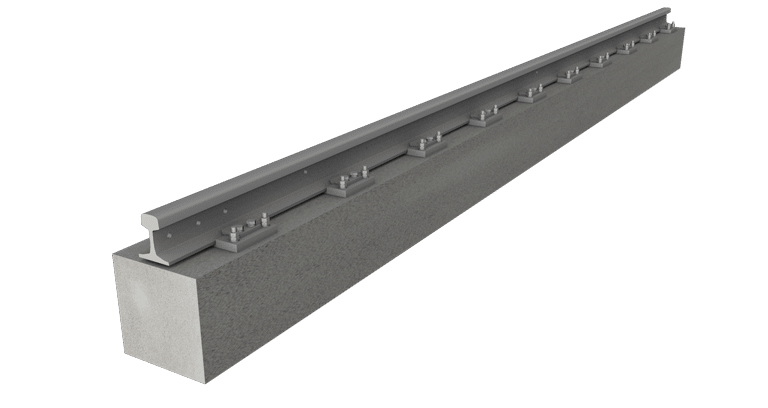

Crane on rails have traditionally been the best method of consistently handling heavy duty materials over a span of distance. Having the right crane rail solution is vital to the success of a project such as a Port or Coal Fired Power Plant which consistently requires containers or bulk to be lifted and unloaded on a constant basis.

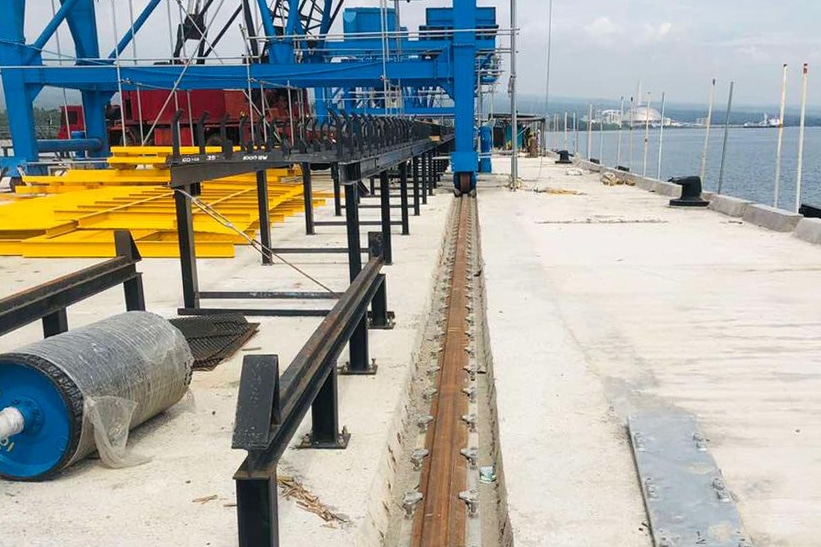

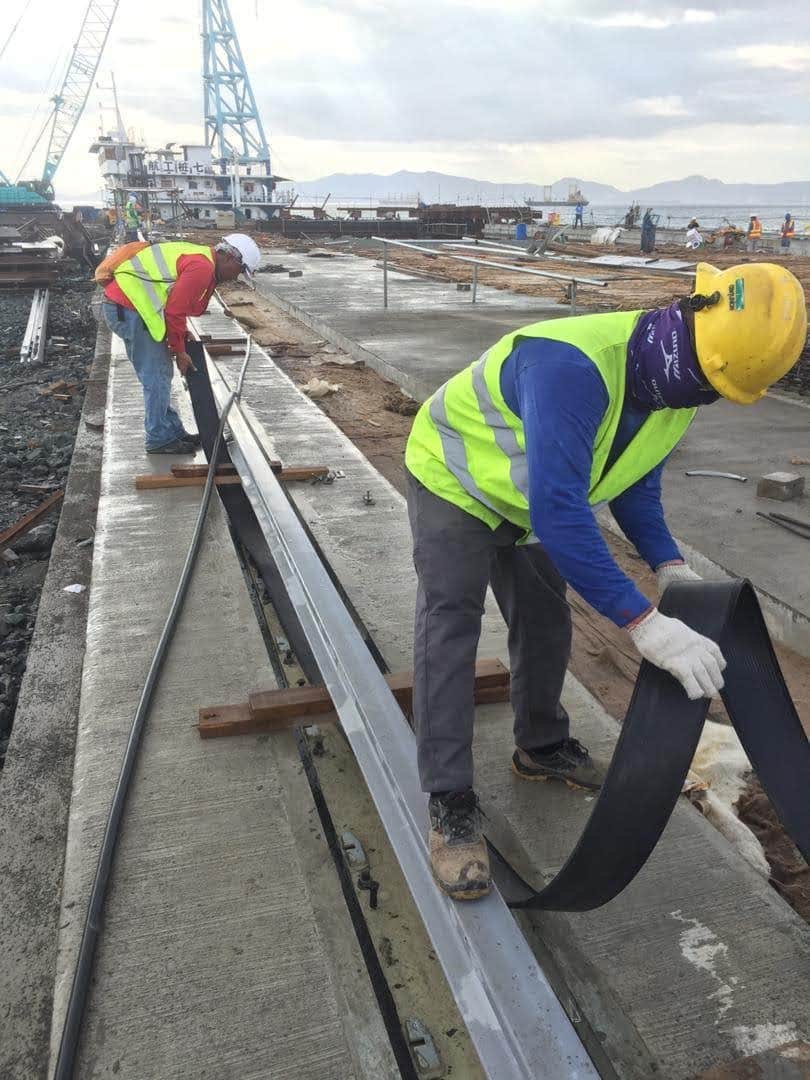

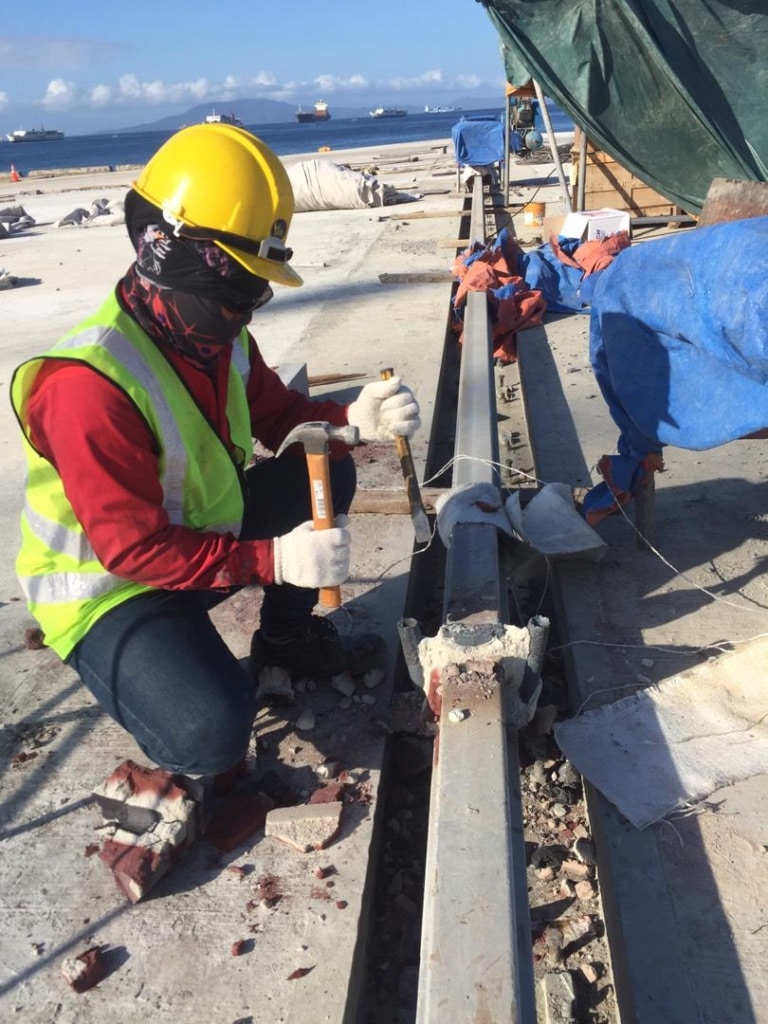

Our installation team can mobilise on site and provide welding, inspection, and commissioning services for new port installations as well as repairs for existing projects. Our clients include Manila North Harbour Port, International Container Terminal Services Incorporated, Batangas Port, Davao International Container Terminal, San Miguel Corporation and many other Steel, Power Plants and Industrial Plants in the region.

Additional Information

GERMAN SERIES RAIL
Size DIN 356
Standard: DIN 536
Dimension (mm)
Weight(kg/m)
Material
Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
A55 55 65 150 31 31.8 700A 10-12
A65 65 75 175 38 43.1 700A 10-12
A75 75 85 200 45 56.2 900A 10-12
A100 100 95 200 60 74.3 900A 10-12
A120 120 105 220 72 100 900A 10-12
JIS SERIES RAIL
Size JIS E1101
Standard: DIN 536
Dimension (mm)
Weight(kg/m)
Material
Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
JIS 15KG 42.86 79.37 79.37 8.33 15.2
JIS EStandard
9-10
JIS 22KG 50.8 93.66 93.66 10.72 22.3 9-10
JIS 30 A 60.33 107.95 107.95 12.3 30.1 9-10
JIS 37 A 62.71 122.24 122.24 13.49 37.2 10-25
JIS 50 N 65 153 127 15 50.4 10-25
CR 73 100 135 140 32 73.3 10-12
CR 100 120 150 155 39 100.2 10-12



CRANE RAIL
Size QU70, QU80, QU100, QU120
Dimension (mm)
Weight(kg/m)
Material
Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
QU 70 70 120 120 28 52.8 U71Mn 12
QU 80 80 130 130 32 63.69 U71Mn 12
QU 100 100 150 150 38 88.96 U71Mn 12
QU 120 120 170 170 44 118.1 U71Mn 12



LIGHT RAIL: 8KGS/M - 30KGS/M
Size
Material (Grade)
Standard
Standard Dimension (mm)
Theory Weight (kgs/M)
Length (M/pc)
Packed in Bundle with Iron Wire (pcs/bundle)
Head Height Bottom Web
8kgs/m Q235 Q/YG01- 2014 24 63.5 52.5 6.5 8.42kgs/m 6 55
12kgs/m Q235 GB11264- 2012 38.1 69.85 69.85 7.54 12.2kgs/m 6 36
15kgs/m Q235/55Q GB11264- 2012 42.86 79.37 79.37 8.33 15.2kgs/m 6,8,9,10 28
18kgs/m Q235/55Q GB11264- 2012 40 90 80 10 18.06kgs/m 6,8,9,10 21
22kgs/m Q235/55Q GB11264- 2012 50.8 93.66 93.66 10.72 22.3kgs/m 6,8,9,10 21
24kgs/m Q235/55Q GB11264- 2012 51 107 92 10.9 24.46kgs/m 6,8,9,10 21
30kgs/m Q235/55Q GB11264- 2012 60.33 107.95 107.95 12.3 30.1kgs/m 6,8,9,10 15
HEAVY RAIL: 38KGS/M, 43KGS/M, 50KGS/M
Size
Material (Grade)
Standard
Standard Dimension (mm)
Theory Weight (kgs/M)
Length (M/pc)
Packed in Bundle with Iron Wire (pcs/bundle)
Head Height Bottom Web
38kgs/m U71Mn GB2585- 2007 68 134 114 13 38.73kgs/m
12, 12.5
10
12kgs/m Q235 GB2585- 2007 70 140 114 14.5 44.65kgs/m
15kgs/m Q235/55Q GB2585- 2007 70 152 132 15.5 51.51kgs/m

WATERFRONT

Flood protection and waterfront structures for berthing facilities for harbours and port projects.

UNDERGROUND

Substructure Foundation Works for Drilling,Tunneling and Earth Retaining Structures.

RAILS

Crane Rails and Accessories for Port
and Material Handling purposes.

PROJECT SERVICES

Consultancy for design
and feasibility studies.
