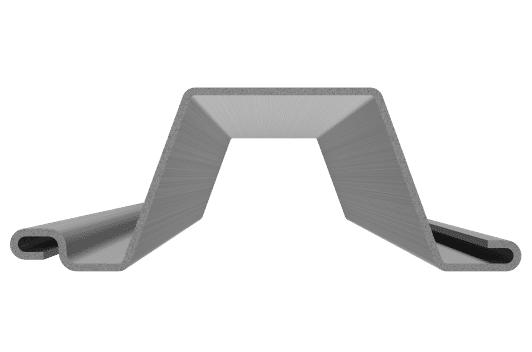

MLL

Product introduction

ADVANTAGES OF MML SHEET PILES

  • Replaces JIS Hat Type Sheet Piles
  • Ease of piling and handling
  • Can be welded together with H Piles to form Stronger Sections

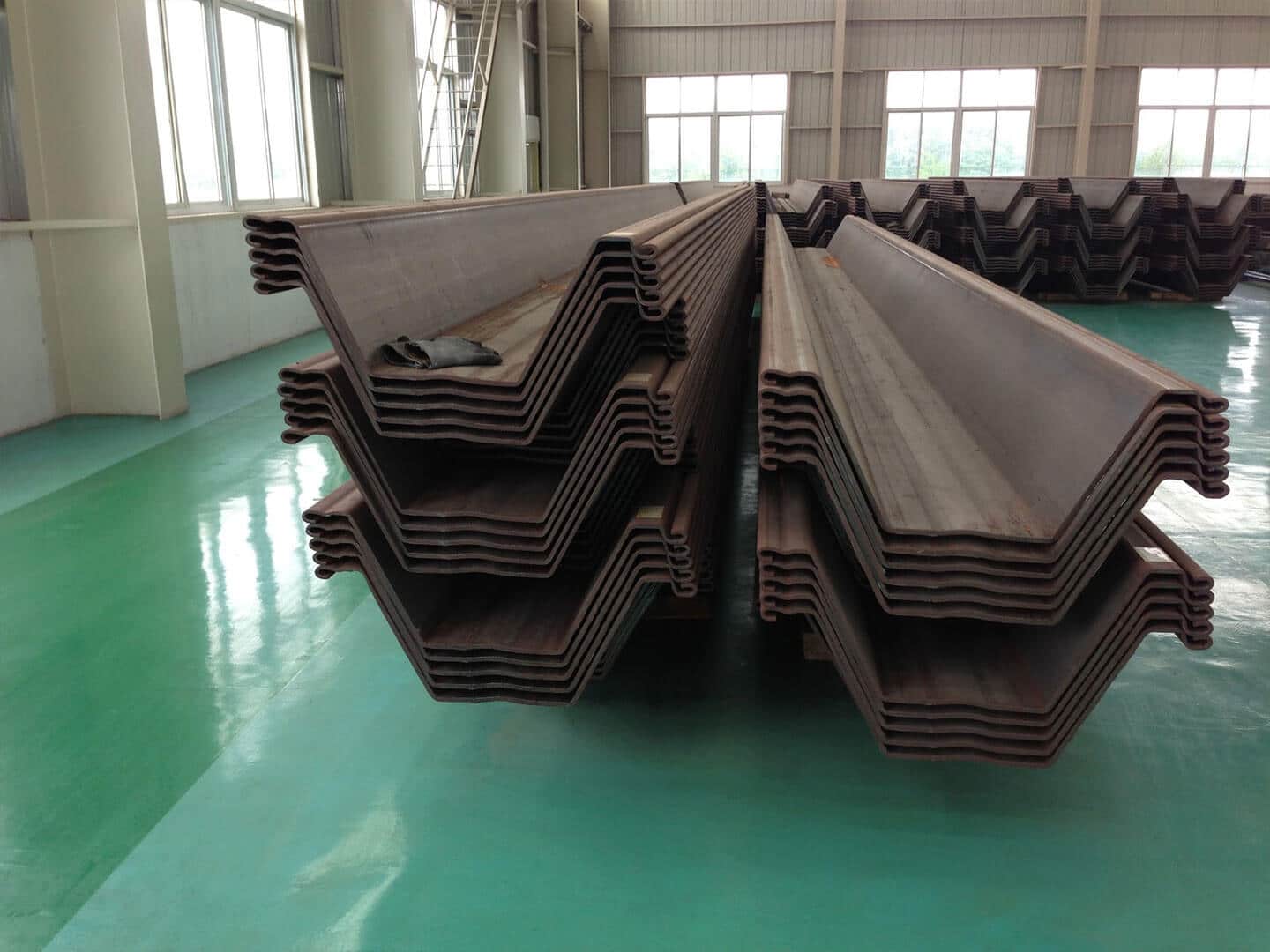

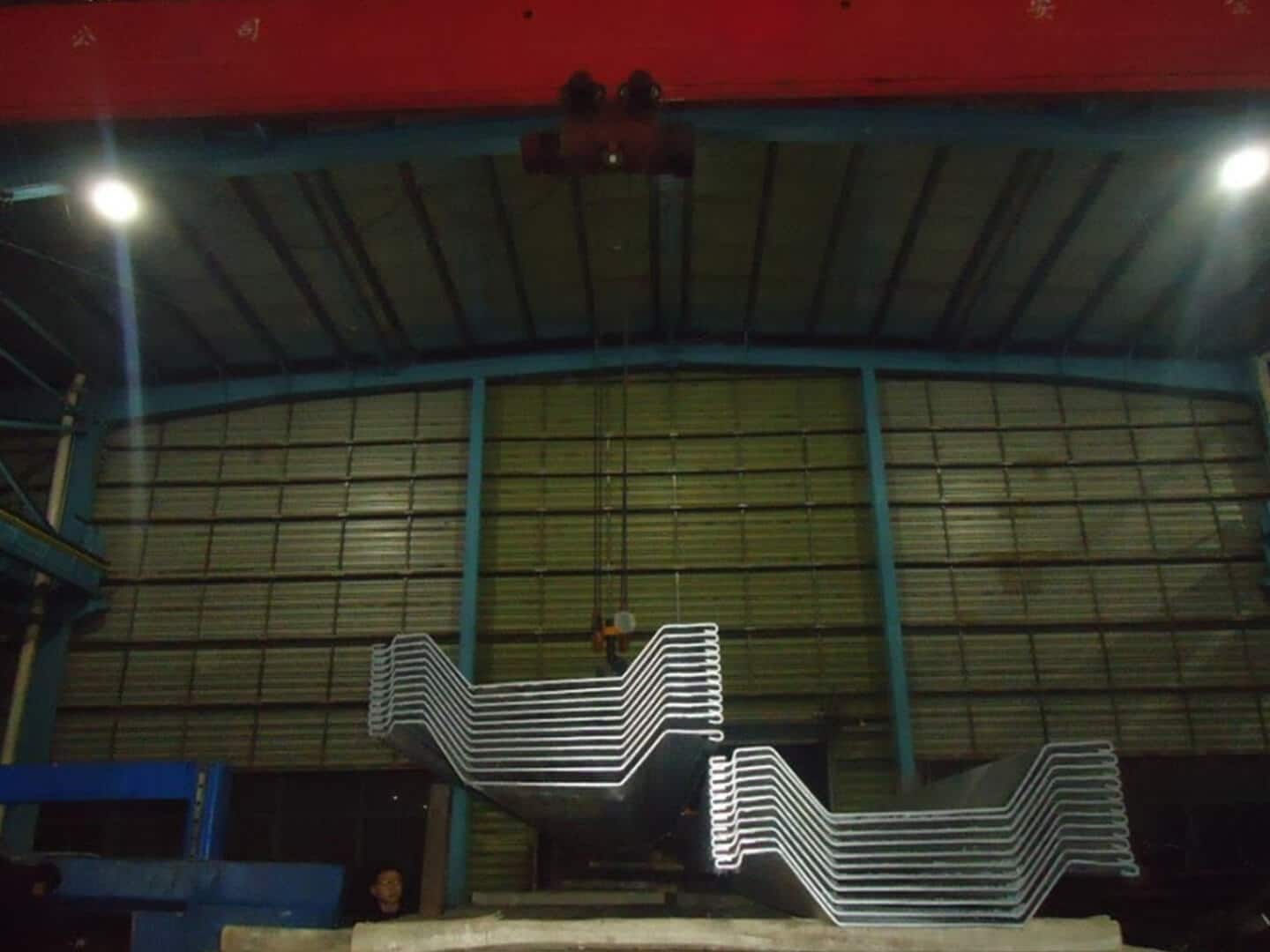

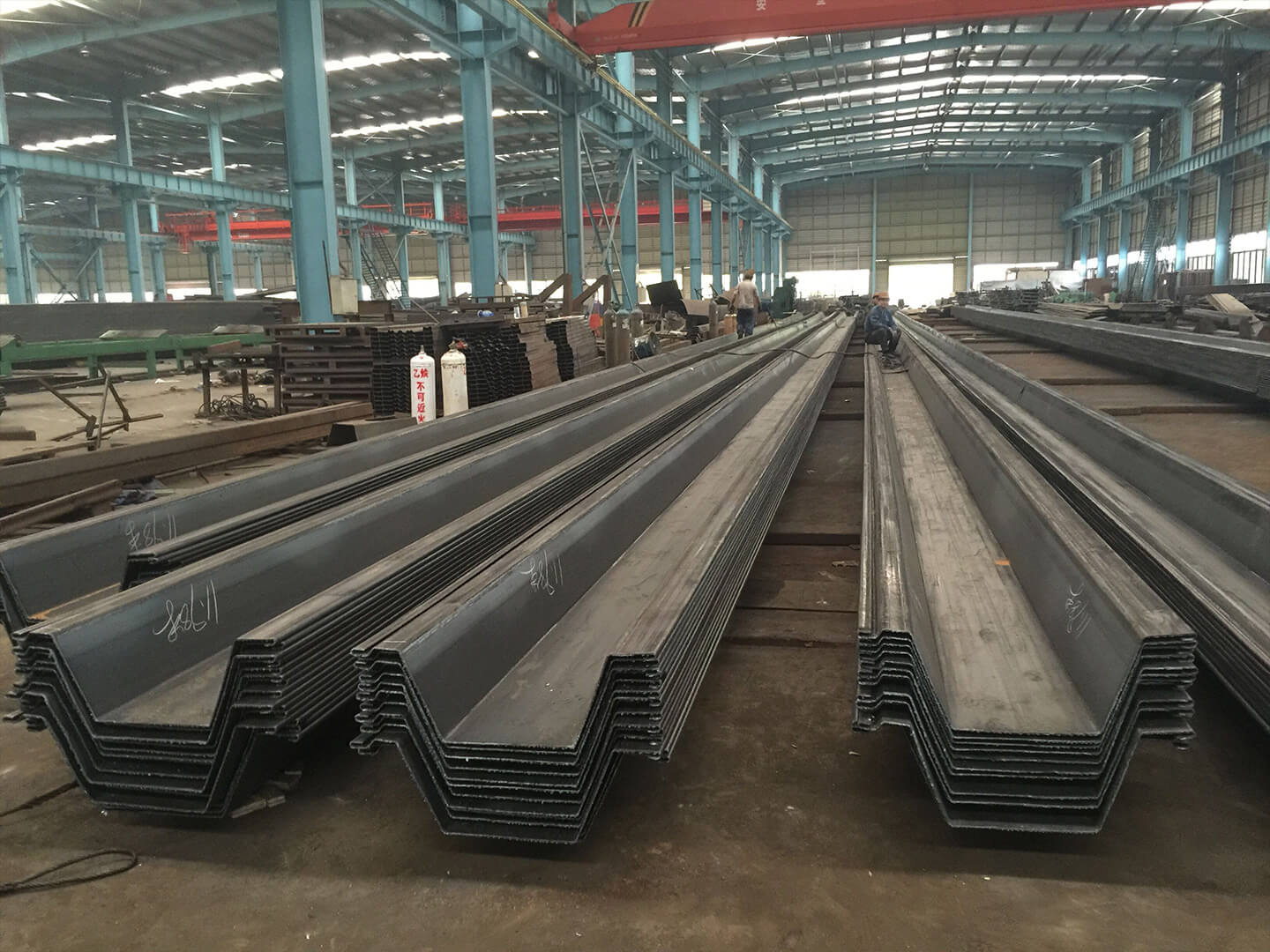

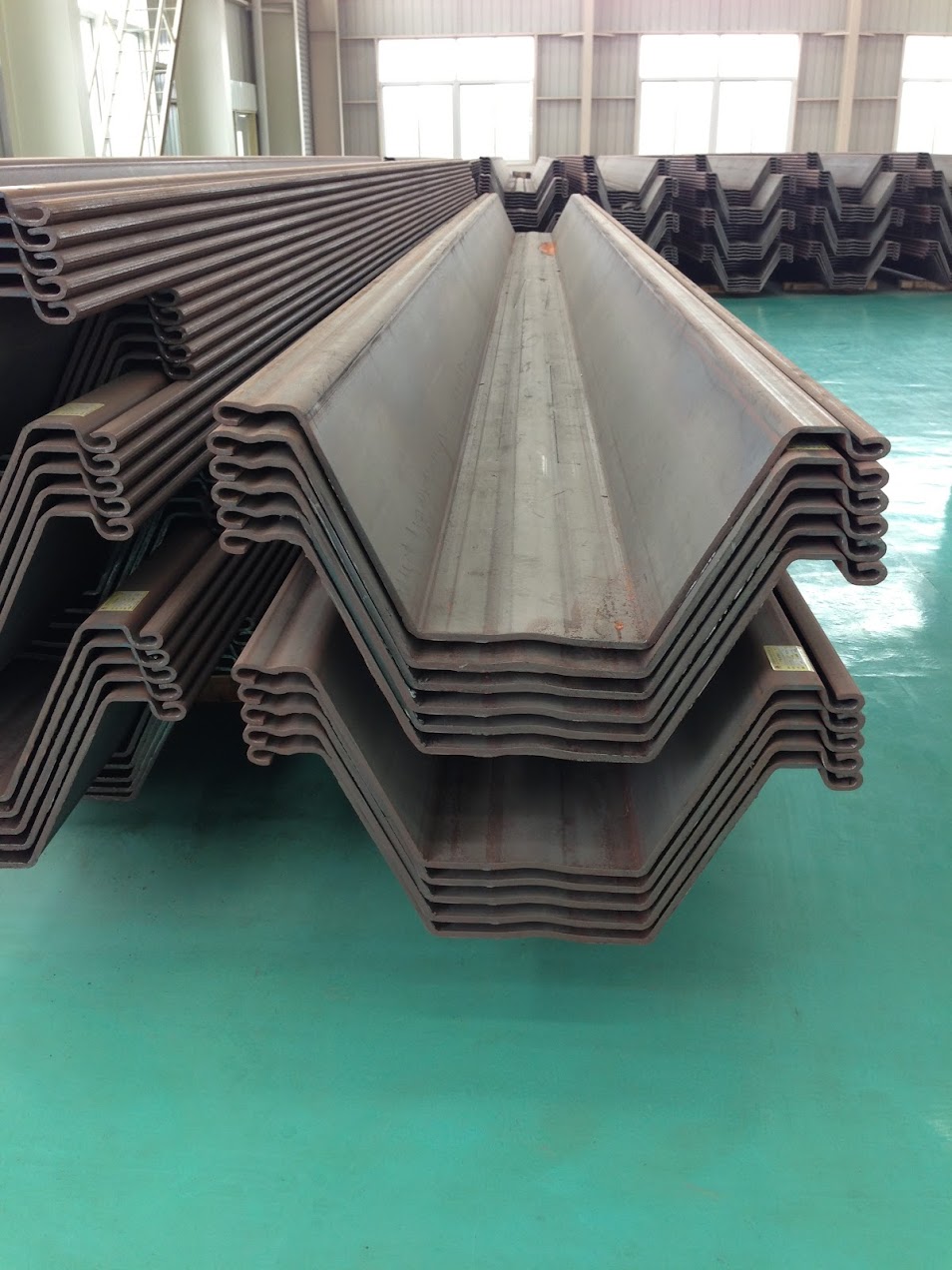

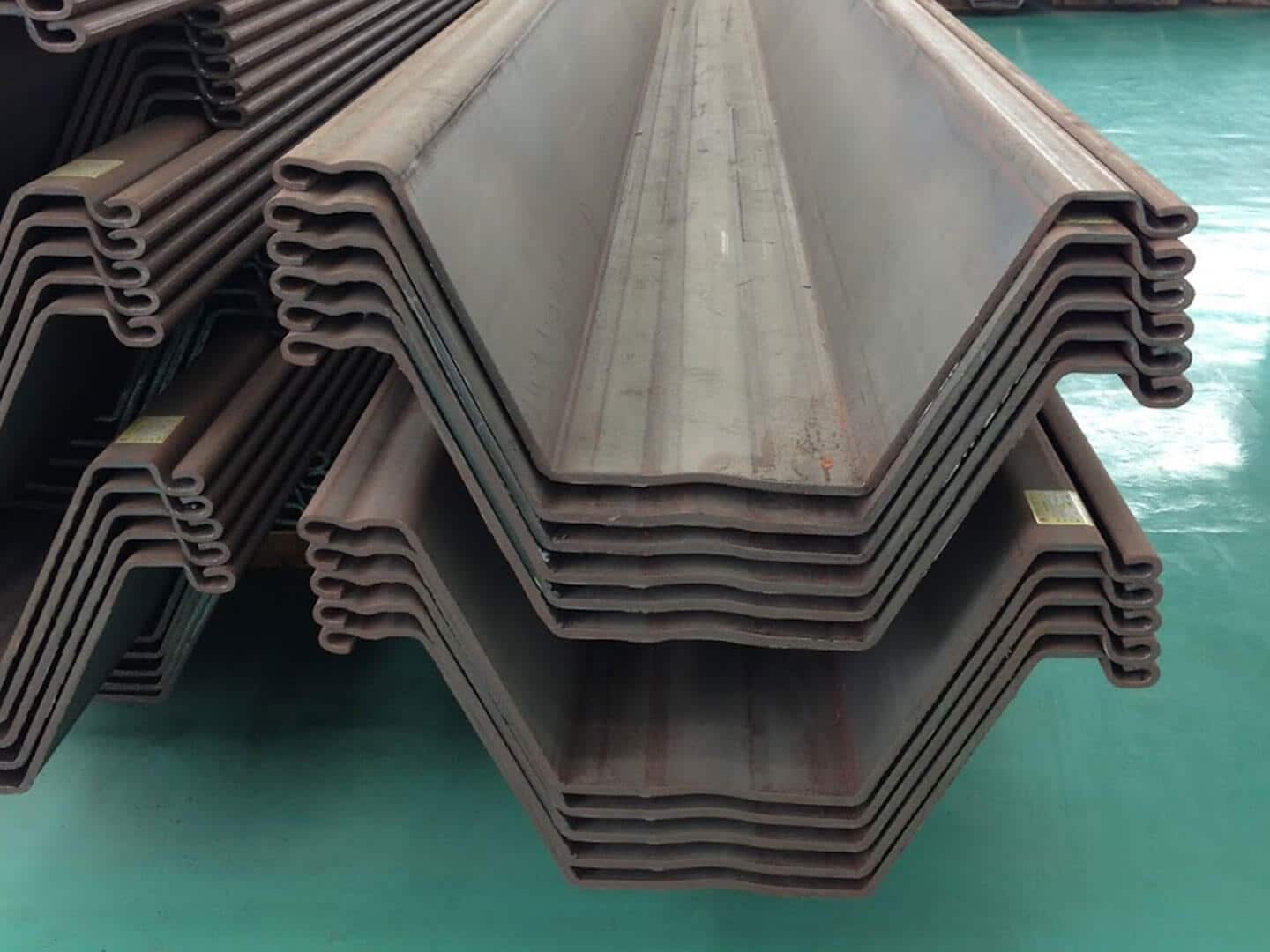

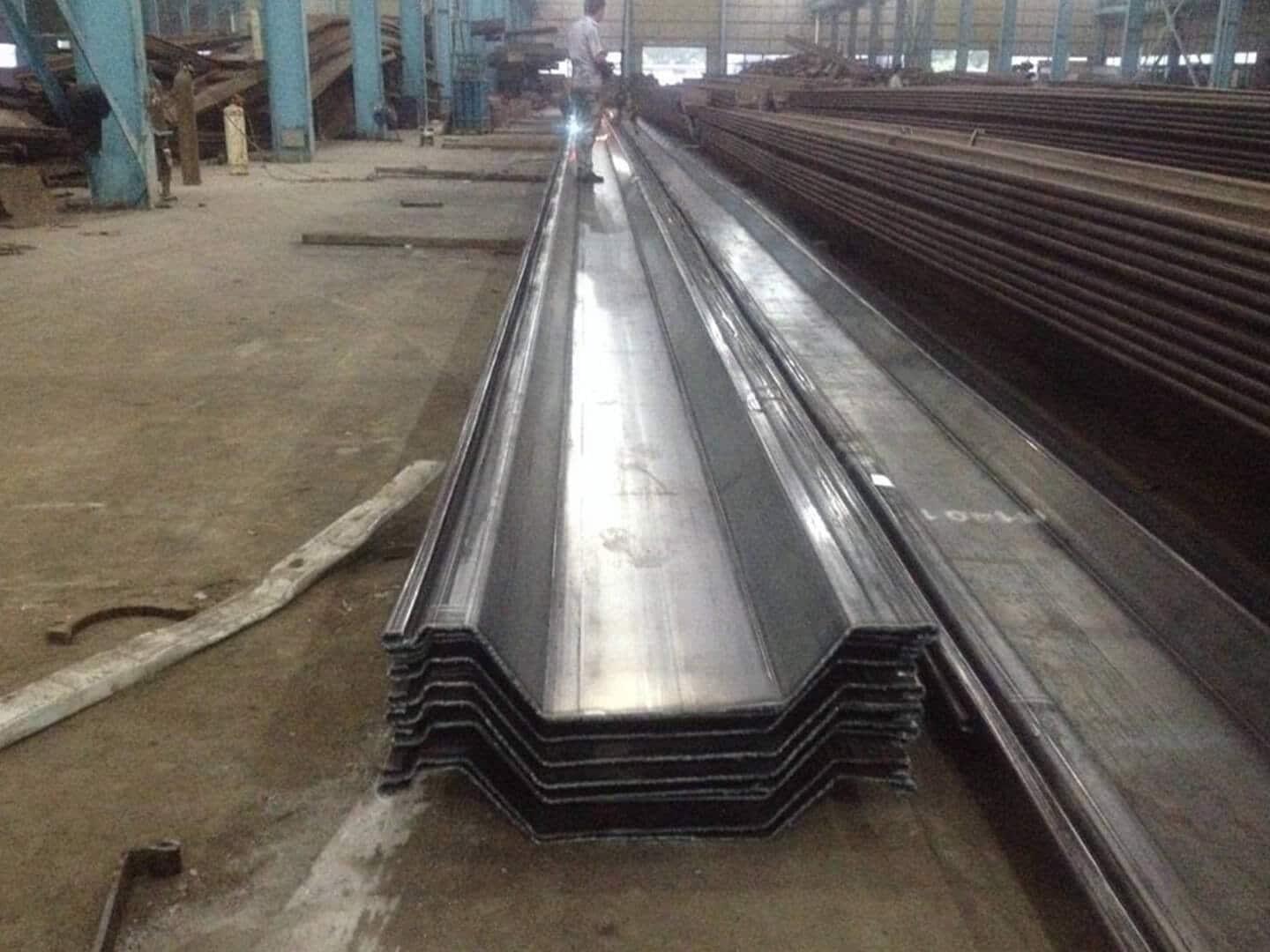

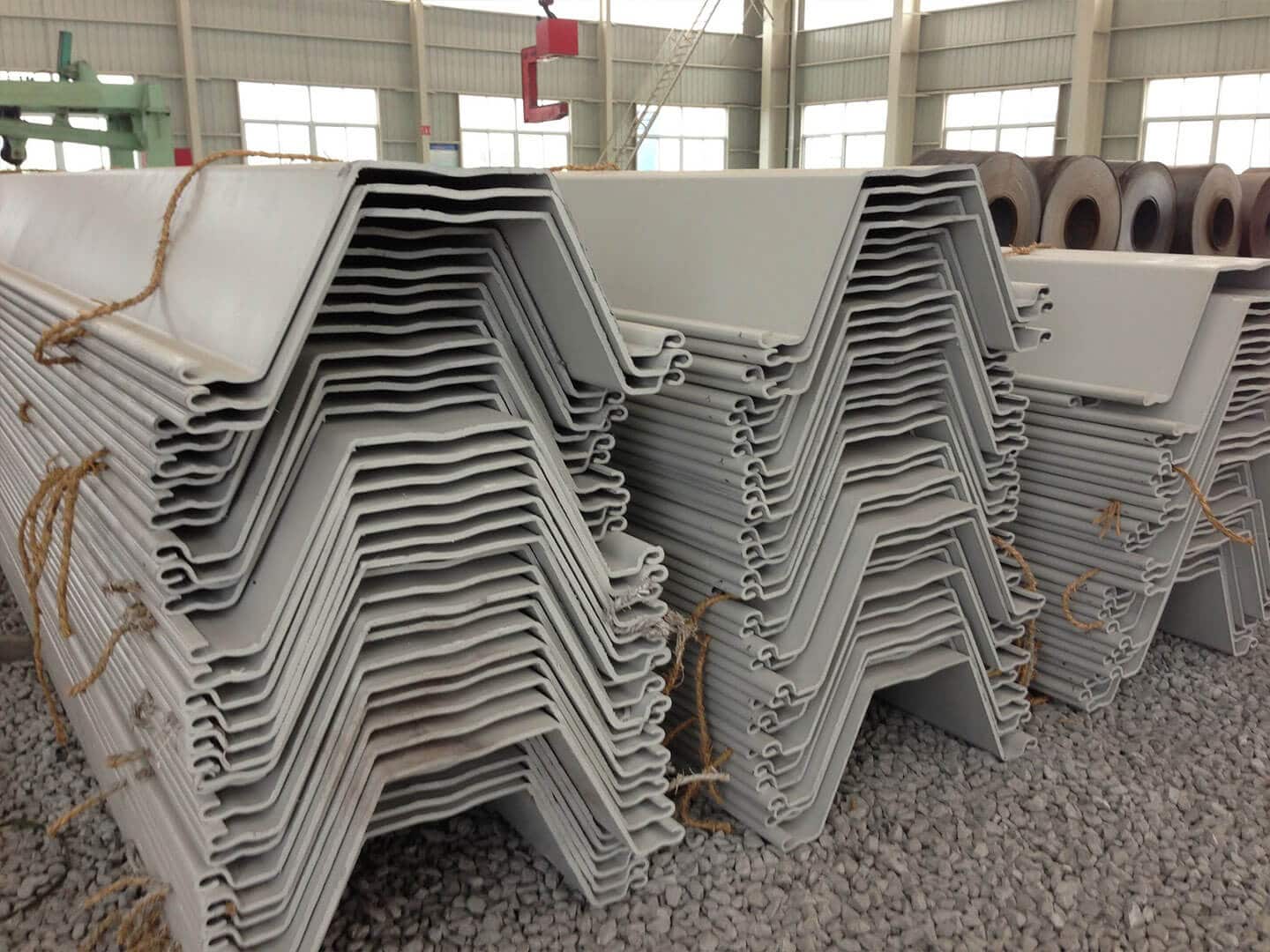

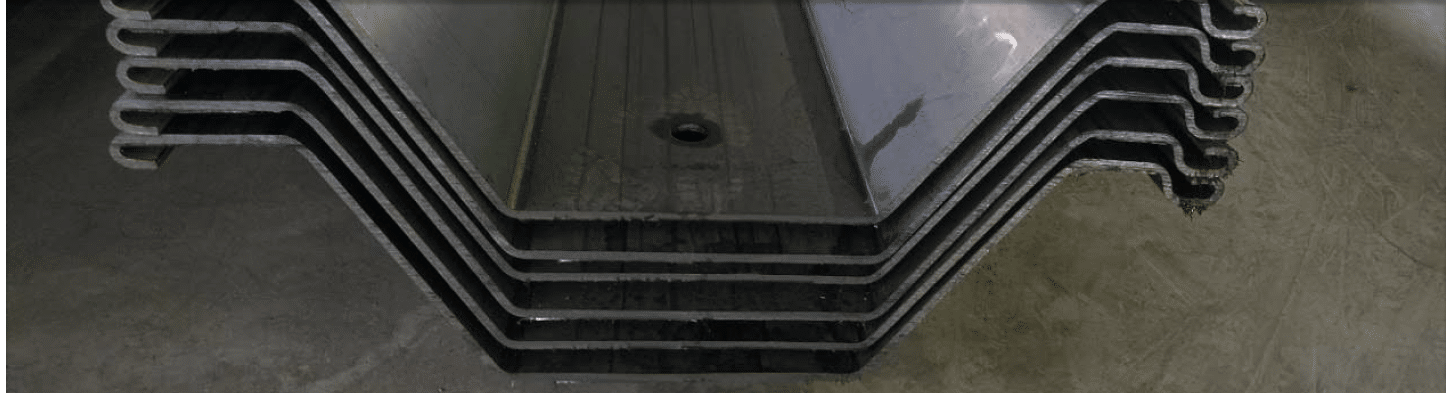

Product Images

Additional Information

PRODUCT INFORMATION SHEET
Section Width
a
mm
Height
h
mm
Thickness
Flange/Web
mm
Section
Area
cm2/m
Weight
kg/m
Weight
kg/m2
Moment of
Inertia
cm4/m
Section Modulus
cm3/m
MLL2-1 700 146 4 56.1 30.8 44 1945 266
MLL2-2 900 155 4 53.2 37.7 41.8 2415 284
MLL3-1 700 147 5 70.3 38.6 55.2 2427 330
MLL3-2 700 148 6 84.1 46.2 66 2907 392
MLL4-1 600 249.5 3.5 60.9 28.7 47.8 5883 470
MLL4-2 700 149 7 98.1 53.9 77 3352 450
MLL5-1 700 150 8 112.1 61.6 88 3814 508
MLL5-2 705 152 8 113.1 62.6 88.8 3950 519
MLL5-3 750 250 4 63.6 37.4 49.9 6582 526
MLL5-4 600 250 4 69.7 32.8 54.7 6711 537
MLL6-1 700 251 5 82.5 45.4 64.8 8408 670
MLL6-2 750 251 5 81 47.7 63.6 8441 672
MLL7-1 921 252 6 91.2 65.9 71.6 9941 789
MLL7-2 750 252 5.7 93.8 55.2 73.6 9604 763
MLL8-1 750 252 6 98.1 57.8 77 10138 804
MLL8-2 750 252 6.2 101.4 59.7 79.6 10470 830
MLL9-1 750 253 7 115.2 67.8 90.4 11810 933
MLL9-2 900 253 7 107.6 76 84.5 11607 917
MLL9-3 700 311.5 5.5 99.4 54.6 78 14634 939
MLL9-4 900 312 7 92.9 65.6 72.9 13931 893
MLL10-1 750 254 8 131.5 77.4 103.2 13345 1050
MLL10-2 900 254 8 122.8 86.8 96.4 13138 1034
MLL10-3 900 313 7 109.2 77.2 85.7 16317 1042
MLL11-1 750 255 9 150.2 88.4 117.9 15256 1196
MLL11-2 900 255 9 140 98.9 109.9 14983 1175
MLL11-3 700 312.5 6.5 117.7 64.7 92.4 17327 1108
MLL12-1 1400 314.5 8.5 115.3 126.7 90.5 19077 1213
MLL12-2 1540 349 8.5 111.7 135.1 87.7 21966 1259
MLL12-2 900 314 8 124.8 88.2 98 18436 1174
MLL12-3 900 348 7 114.9 81.2 90.2 21125 1214
MLL12-4 1340 314.5 8.5 116.7 122.7 91.6 19040 1210
MLL13-1 1400 315.5 9.5 127.4 140 100 20973 1330
MLL13-2 1540 349.5 9 117.6 142.2 92.3 22949 1312
MLL13-3 750 347.5 7 129.8 76.4 101.9 23218 1342
MLL13-4 900 349 8 131.2 92.7 103 23944 1372
MLL13-5 1340 315.5 9.5 128.9 135.6 101.2 20916 1326
MLL14-1 1400 316 10 133.4 146.6 104.7 21919 1387
MLL14-2 1400 316.5 10.5 139.9 153.7 109.8 22678 1432
MLL14-3 1540 350 9.5 123.4 149.3 96.9 23847 1362
MLL14-4 1540 350.5 10 129.6 156.7 101.7 24977 1425
MLL14-5 750 348 7.5 137.6 81 108 24529 1414
MLL14-6 1340 316.5 10.5 141.4 148.8 111 22593 1428
MLL14-7 900 316 10 156.4 110.5 122.8 22978 1454
MLL15-1 750 348.5 8 147.1 86.6 115.5 26256 1512
MLL15-2 900 350 9 147.6 104.3 115.9 26683 1525
MLL16-1 1260 379 8.5 130.4 129.1 102.4 31326 1653
MLL16-2 750 349 8.5 158.1 93.1 124.1 28026 1613
MLL17-1 1400 423.5 8.5 126 138.5 98.9 36954 1745
MLL17-2 750 349.5 9 167.4 98.5 131.4 29618 1702
MLL18-1 1260 380 9.5 144.5 142.9 113.4 34659 1823
MLL18-2 1400 424 9 132.4 145.5 103.9 38234 1802
MLL18-3 750 350 9.5 176.7 104 138.7 31305 1798
MLL18-4 1600 449 8.5 122.7 154.2 96.3 41530 1850
MLL19-1 1260 381 10 151.2 149.5 118.7 35936 1886
MLL19-2 1400 424.5 9.5 139.4 153.1 109.4 40303 1898
MLL19-3 750 350.5 10 186 109.5 146 33050 1893
MLL20-1 1260 381.5 10.5 161.8 160.1 127 39065 2047
MLL20-2 1400 425 10 145.2 159.6 114 41428 1948
MLL20-3 1600 450 9.5 136.9 172 107.5 46336 2059
MLL22-1 1400 475 10 150.1 165 117.8 52048 2191
MLL22-2 1600 451 10.5 149.8 188.2 117.6 49213 2182
MLL23-1 1600 474.5 9.5 144.1 181 113.1 55650 2345
MLL24-1 1260 426.2 11.2 178.2 176.3 139.9 52149 2446
MLL24-2 1400 476.2 11.2 169 185.8 132.7 58512 2457
MLL25-1 1600 475.5 10.5 158.7 199.4 124.6 60208 2532
MLL26-1 1260 427.2 12.2 194.1 192 152.4 55990 2621
MLL26-2 1400 477.2 12.2 183.7 201.9 144.2 62045 2601
MLL27-1 1600 476.5 11.5 172.5 216.6 135.4 65401 2745
MLL28-1 1260 428.2 13.2 211.7 209.4 166.2 60145 2808
MLL28-2 1400 478.2 13.2 199.9 219.7 156.9 66192 2768
MLL28-3 1500 509.2 10.2 166.8 196.4 130.9 72606 2851
MLL29-1 1400 510.2 11.2 179.6 197.5 141 74056 2902
MLL30-1 1500 510.2 11.2 179 210.7 140.5 76918 3015
MLL31-1 1400 511 12 193.6 212.8 152 79733 3120
MLL32-1 1400 511.5 12.5 201.9 221.9 158.5 80906 3163
MLL32-2 1500 511 12 192.7 226.9 151.3 82772 3239
MLL33-1 1400 512 13 209.3 230 164.3 84655 3306
MLL40-1 1160 549.5 13.5 249.3 227 195.7 111652 4064
MLL42-1 1160 550 14 259.2 236.1 203.5 115910 4215
MLL44-1 1160 550.5 14.5 274.9 250.3 215.8 121797 4420
MLT
Section Width
a
mm
Height
h
mm
Thickness
Flange/Web
mm
Section
Area
cm2/m
Weight
kg/m
Weight
kg/m2
Moment of
Inertia
cm4/m
Section Modulus
cm3/m
MLT1-1 600 78 6 80.9 38.1 63.5 704 180
MLT1-2K 600 78 6 81.8 38.5 64.2 726 185
MLT1-3 650 78 6 79.4 40.5 62.3 700 180
MLT1-4 550 78 6 79.9 34.8 62.7 698 178
MLT1-5 500 78 6 84.6 33.2 66.4 688 176
MLT1-6K 742 92 6 69.8 40.7 54.8 896 194
MLT1-7K 400 50 6 70.7 22.2 55.5 250 100
MLT1-8K 400 48 4 47.1 14.8 37 165 69
MLT1-9 300 36.5 3.4 48.4 11.4 38 84 46
MLT1-10 330 37 4 51.7 13.4 40.6 99 53
MLT1-11 400 36.6 3.5 43.3 13.6 34 85 47
MLT1-12 400 37 4 49.7 15.6 39 92 53
MLT2-1 600 80 8 108 50.9 84.8 942 237
MLT2-2K 742 94 8 93.4 54.4 73.3 1200 254
MLT2-3K 600 80 8 108.4 51.1 85.1 970 241
MLT2-4K 742 93 7 81.5 47.5 64 1045 225
MLT2-8 880 152 4 59.6 41.2 46.8 1897 251
MLT3-1 880 154 6 89.6 61.9 70.3 2848 372
MLT4-1 880 156 8 122.4 84.6 96.1 3880 500
