HAT
Hat Type
Sheet Pile
Hat Type sheet piles are currently the widest Hot Rolled Sheet Piles available in the market with 900mm width. Their shape resembles a Japanese Samurai Hat hence the name Hat Type Sheet Piles. They are produced by Nippon Steel Corporation from Japan. Piles are produced to JIS 5523 standard with grades SYW295 and SYW 390.
Mlion stocks these piles in its locations across Southeast Asia.
 |
 |
 |
- 900mm width for faster installation
- Produced in Japan

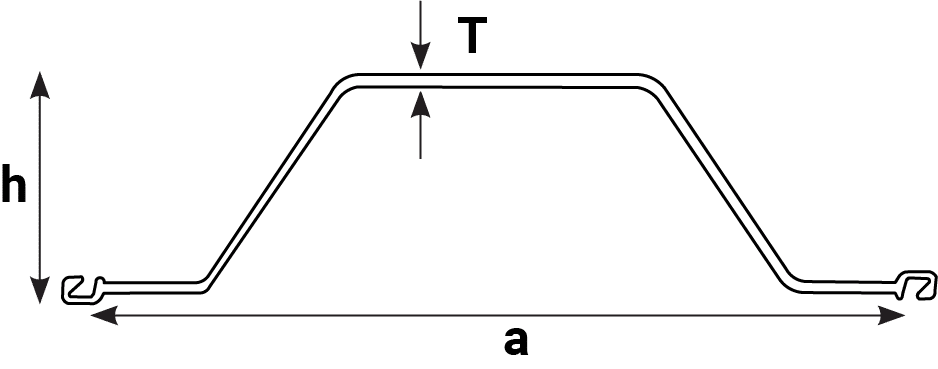

PRODUCT INFORMATION SHEET
| Section | Width a mm |
Height h mm |
Thickness Flange/Web mm |
Section Area cm2/m |
Weight kg/m |
Weight kg/m2 |
Moment of Inertia cm4/m |
Section Modulus cm3/m |
| 10H | 900 | 230 | 10.8 | 110 | 86.4 | 96 | 10500 | 902 |
| 25H | 900 | 300 | 13.2 | 144.4 | 113 | 126 | 24400 | 1610 |
| 45H | 900 | 368 | 15 | 187 | 147 | 163 | 45000 | 2450 |
| 50H | 900 | 370 | 17 | 212.7 | 167 | 186 | 51100 | 2760 |

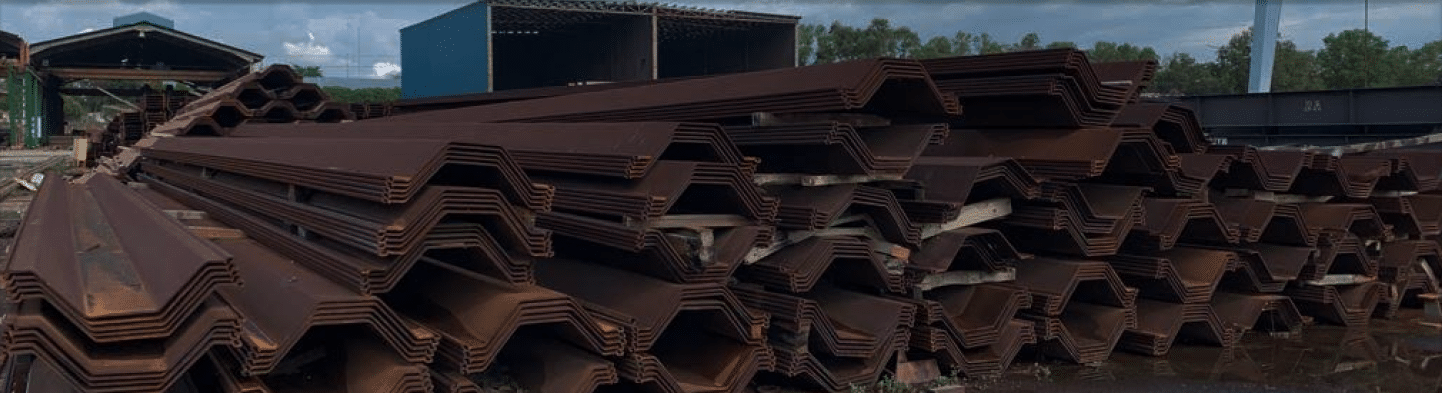

Product Images
