Product introduction

JIS Type Sheet piles have been commonly used in Asia and represents the main stay of the sheet pile market. Its 400mm width is easily driven by excavator vibratory hammers and provides good resale value for temporary usage.

MHU Sheet Piles or also known as JIS Type hot rolled sheet piles are the most common types of sheet piles available in the market. They were designed according to Japanese Industrial Standard (JIS) and have been implemented in the Southeast Asian market for decades. Its narrow U shape of 400mm allows for most piling equipment in Asia to be easily adapted and to drive the piles. However, its narrow width also reduces its efficiency in piling speed and its strength to weight ratios.

The wider 500mm and 600mm series comprises of 5L and 6L, 2W, 3W and 4W, provides greater efficiency than its 400mm series. However, they are seldom implemented due to higher cost in production and long lead times.

Piles are produced to JIS 5528, JIS 5523 and EN10248 standards. Common grade in most of Southeast Asia is SY295 (JIS 5528). In Singapore and other countries conforming to Eurocode, they would follow SYW295 or SYW 390 for JIS 5523 standard which declares the carbon content and carbon equivalent measurements. S270GP and S355GP will conform to EN 10248 standards for Hot Rolled Steel Sheet Piles.

Mlion stocks MHU Sheet Piles from various countries such as China, Japan and Thailand.

Additional Information

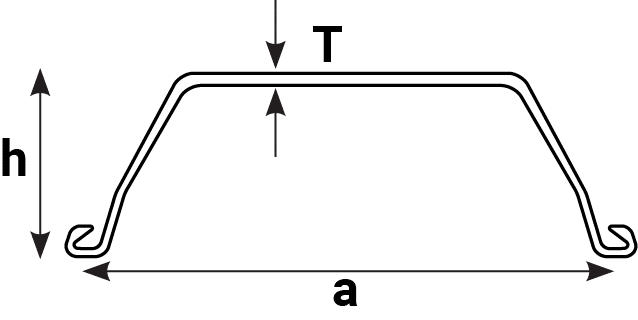

PRODUCT INFORMATION SHEET
Section Width
a
mm
Height
h
mm
Thickness
Flange/Web
mm
Section
Area
cm2/m
Weight
kg/m
Weight
kg/m2
Moment of
Inertia
cm4/m
Section Modulus
cm3/m
IIW 600 130 10.3 78.7 61.8 103 13000 1000
IIIW 600 180 13.4 103.9 81.6 136 32400 1800
IVW 600 210 18 135.3 106 177 56700 2700
II 400 100 10.5 61.18 48 120 8740 874
III 400 125 13 76.42 60 150 16800 1340
IIIA 400 150 13.1 74.4 58.4 146 22800 1520
IV 400 170 15.5 96.99 76.1 190 38600 2270
VL 500 200 24.3 133.8 105 210 63000 3150
VIL 500 225 27.6 153 120 240 86000 3820

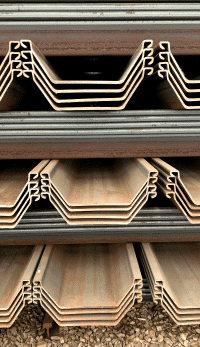

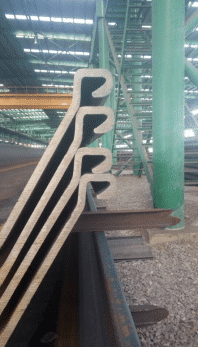

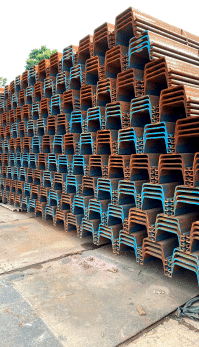

Product Images
