FLAT WEB SHEET PILES

Product introduction

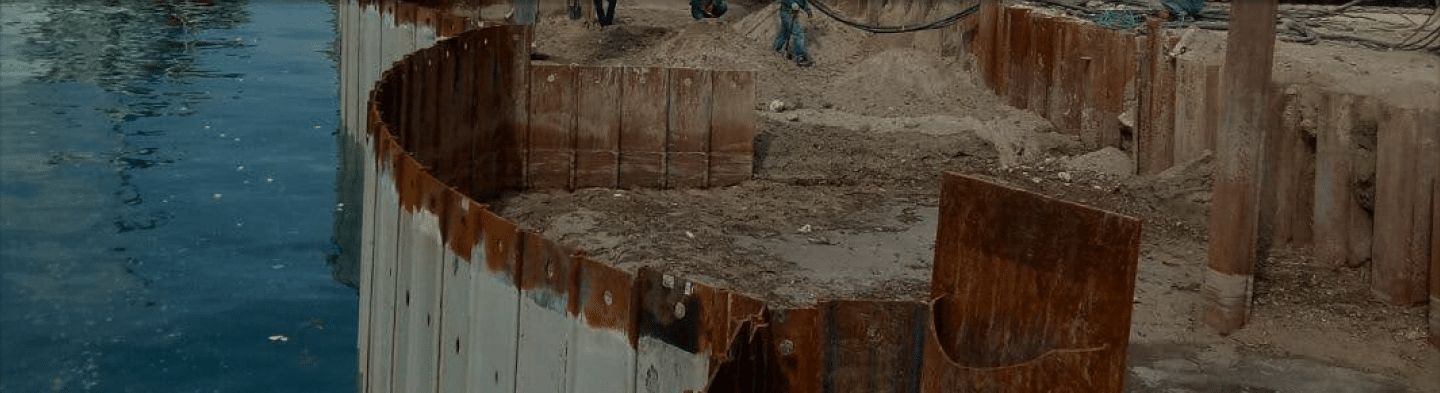

Flat Web Sheet Piles boast extremely high tensile strength at its interlocking sections to form large circular cells. These cells works on a gravity structure basis and uses the infill of the sand and gravel to create stability to the structure. Cells can be customised in width and depth.

TARGET

  • Quary Walls
  • Breakwaters
  • Bridges and Piers
  • Cofferdam
  • Islands
  • Tunnelling
  • Reclamation

Manufacturing Standards:

JIS 5523
SYW 295 / SYW 390

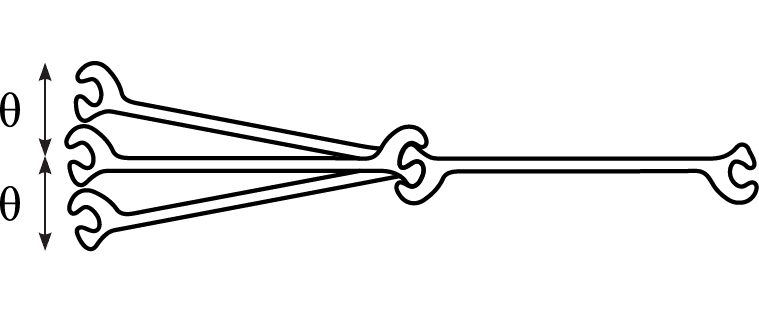

Deviation Angle

NS-SP-FL

NS-SP-FXL

JOINT STRENGTH

Type Tensile Strength (MN/m)
NS-SP-FL 3.92
NS-SP-FXL 5.88

ADDITIONAL INFORMATION

PRODUCT INFORMATION SHEET
Type
Dimension Per Pile Per 1M of Pile Wall Width
Effective width
a
mm
Effective
height
h
mm

Thickness
T

mm

Sectional
area

cm2

Moment
of Inertia

cm

Section Modulus

cm3

Unit
Mass

kg/m

Sectional Area

cm2/m

Moment
of Inertia

cm4/m

Section
Modulus

cm3/m

Unit
Mass

kg/m2

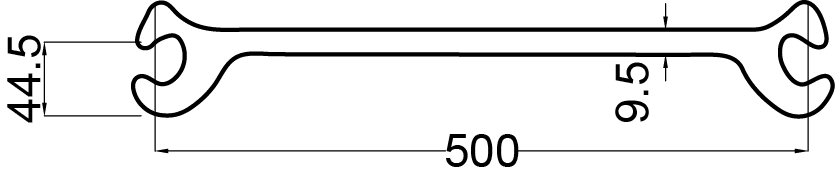

NS-SP-FL 500 44.5 9.5 78.57 184 45.7 61.7 157.1 396 89 123
NS-SP-FXL 500 47 12.7 98.36 245 60.3 77.2 196.7 570 121 154
