Mlion Hot Rolled Z sheet pile

Mlion Leading Innovation in Steel Sheet Pile Solutions

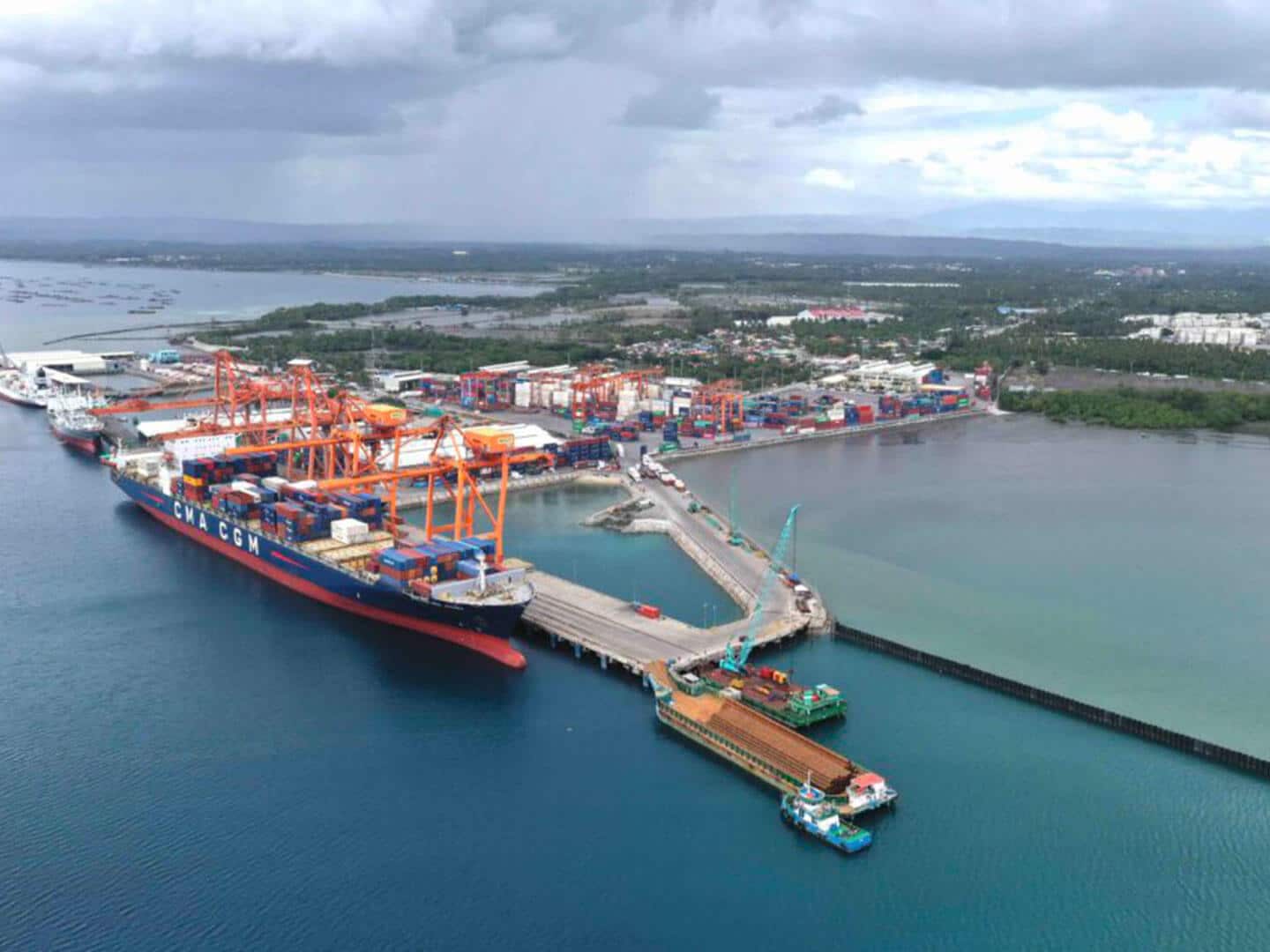

The steel sheet piles of Mlion Corporation are used in many fields such as port and harbor structures, river revetments, retaining walls, and cofferdams, and have gained wide market acceptance due to their excellent product quality and construction efficiencies.
Mlion Corporation, drawing from a wealth of expertise in rolling, fabrication, and construction methods, has earned a strong reputation in these fields.

Building on an accumulation of technical know-how, Mlion Corporation has developed and introduced solution proposals that maximize the potential of its full product lineup.

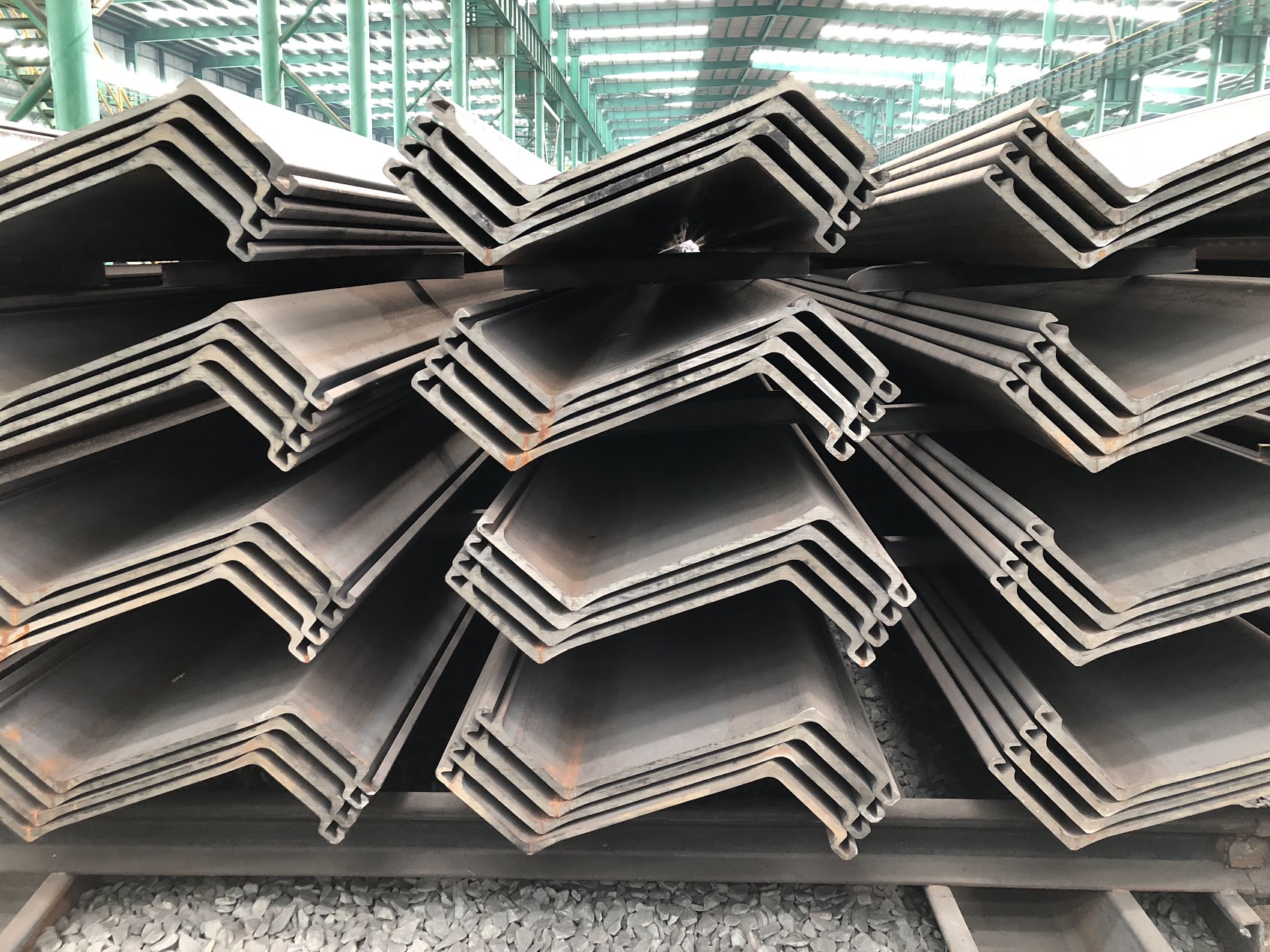

MHZ stands for Mlion Hot-Rolled Z-shaped sheet pile

Engineered for strength, precision, and reliability, MHZ sheet piles embody Mlion’s commitment to providing robust solutions for today’s most demanding infrastructure projects.

Looking ahead, Mlion Corporation will continue striving to create innovative products that fully harness the capabilities of sheet piles, while addressing the increasingly stringent and diverse needs of users worldwide.

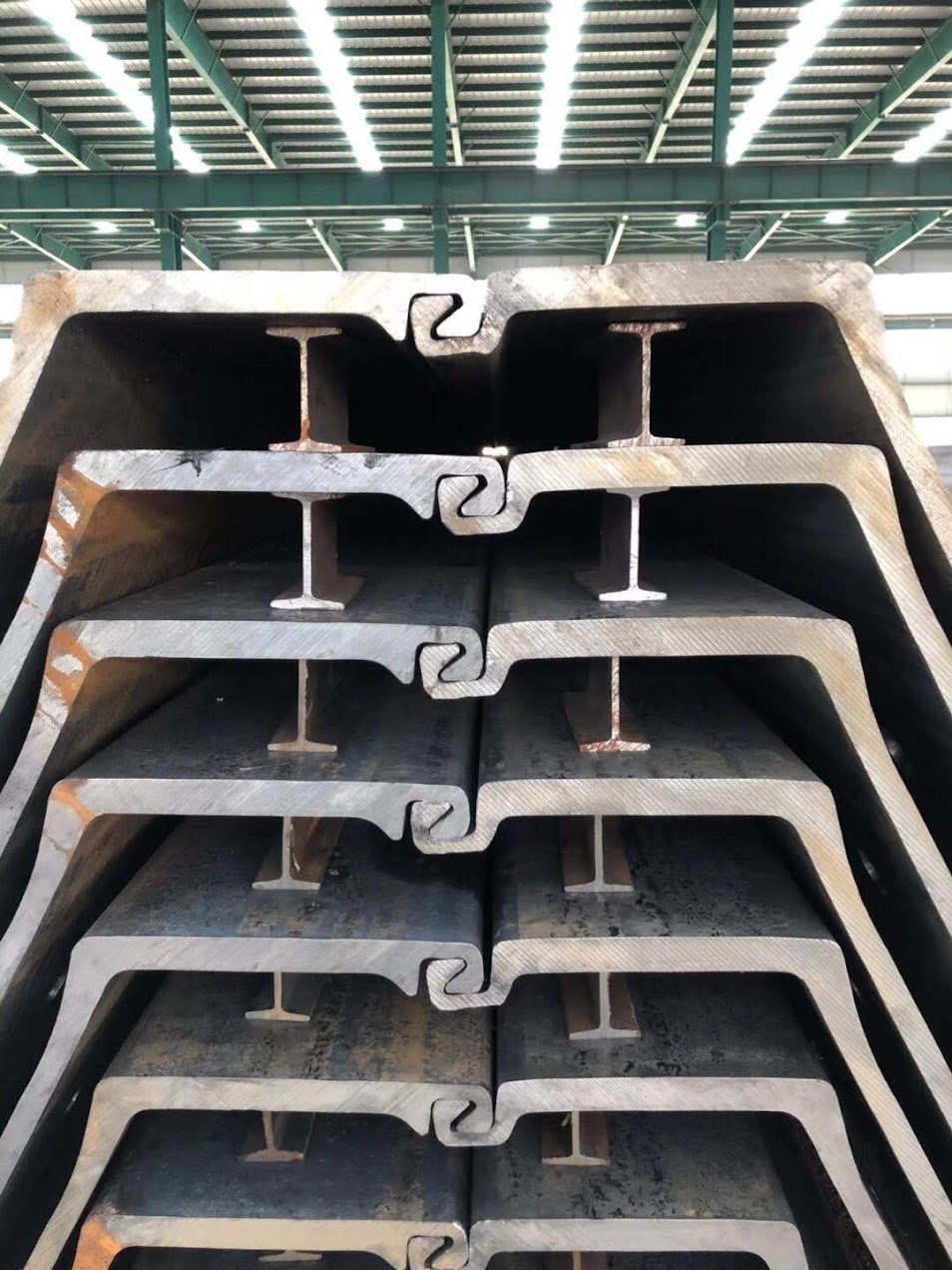

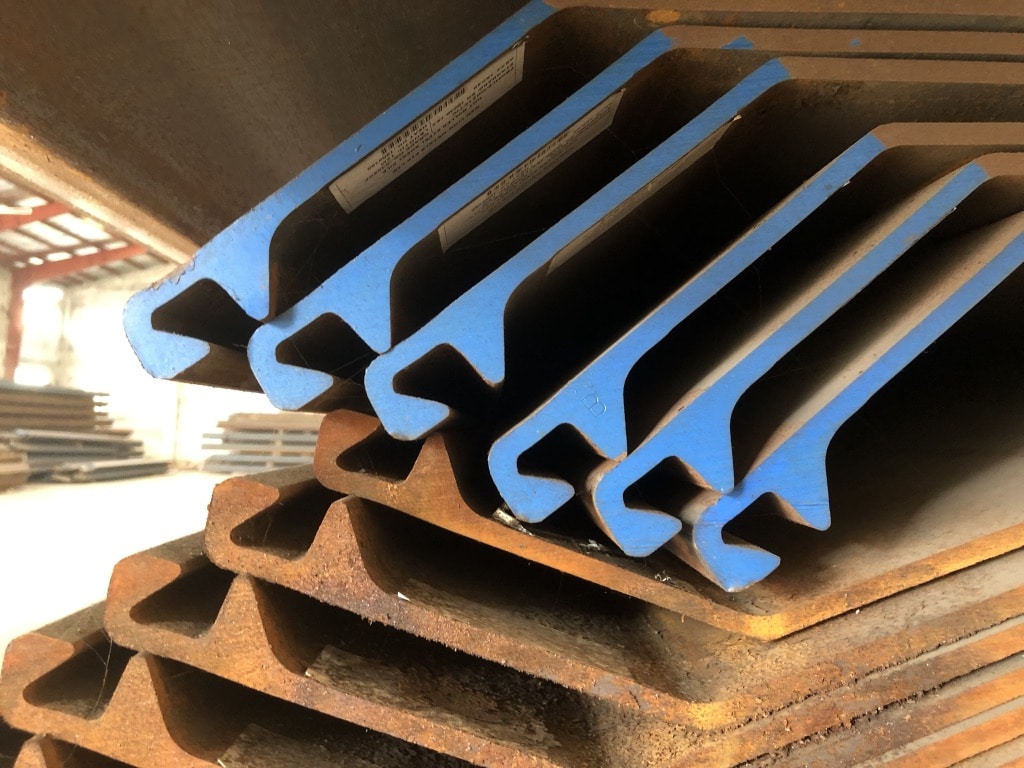

2x Stronger Interlocks

Provide superior strength and water tightness as well as accuracy to interlocks. Provides at least 2x stronger interlock strength as compared to Cold Formed Sheet Piles.

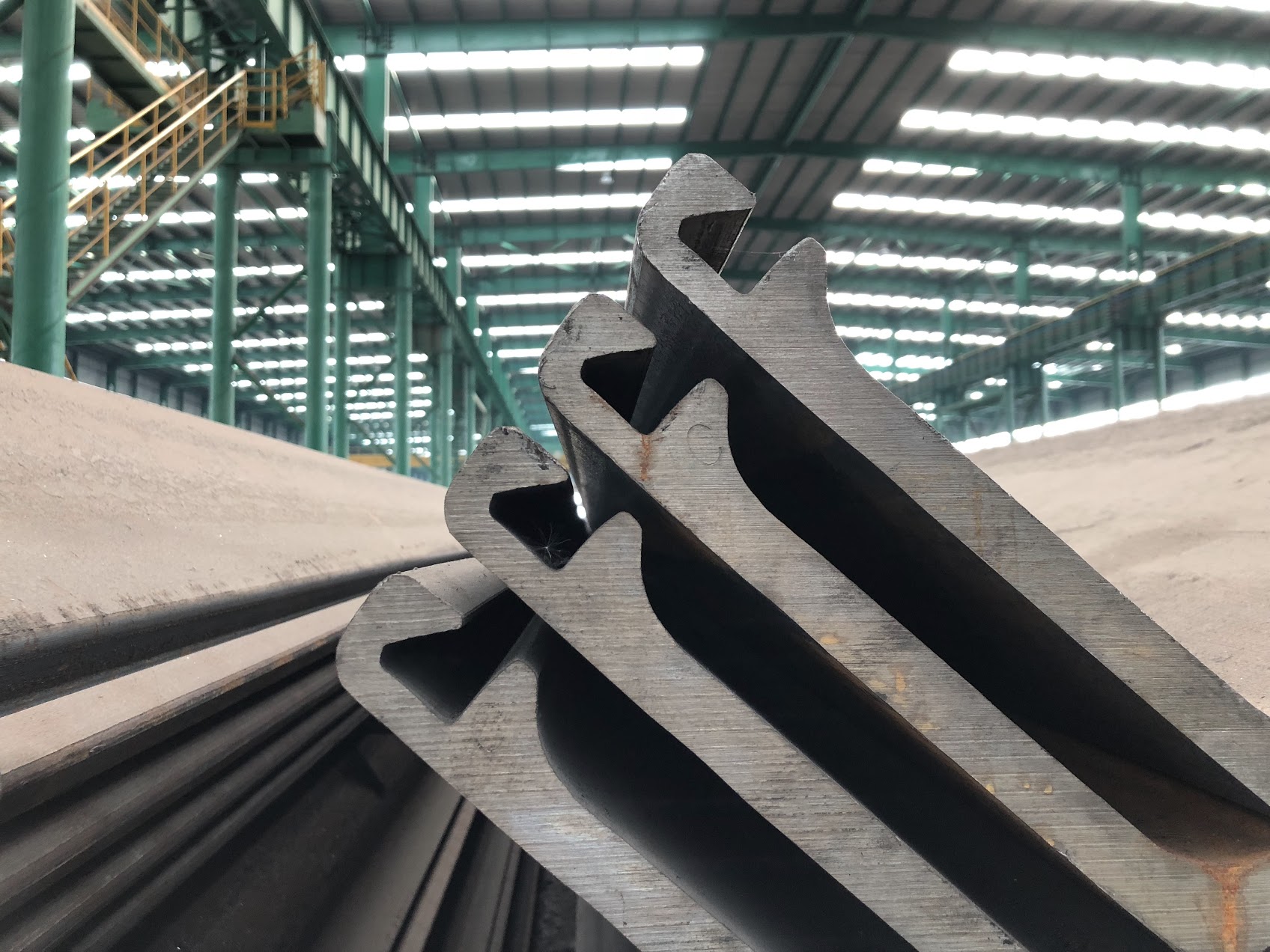

Larssen Interlock

Interlocks are Larssen Designed. Which have been tried and tested over decades of production.

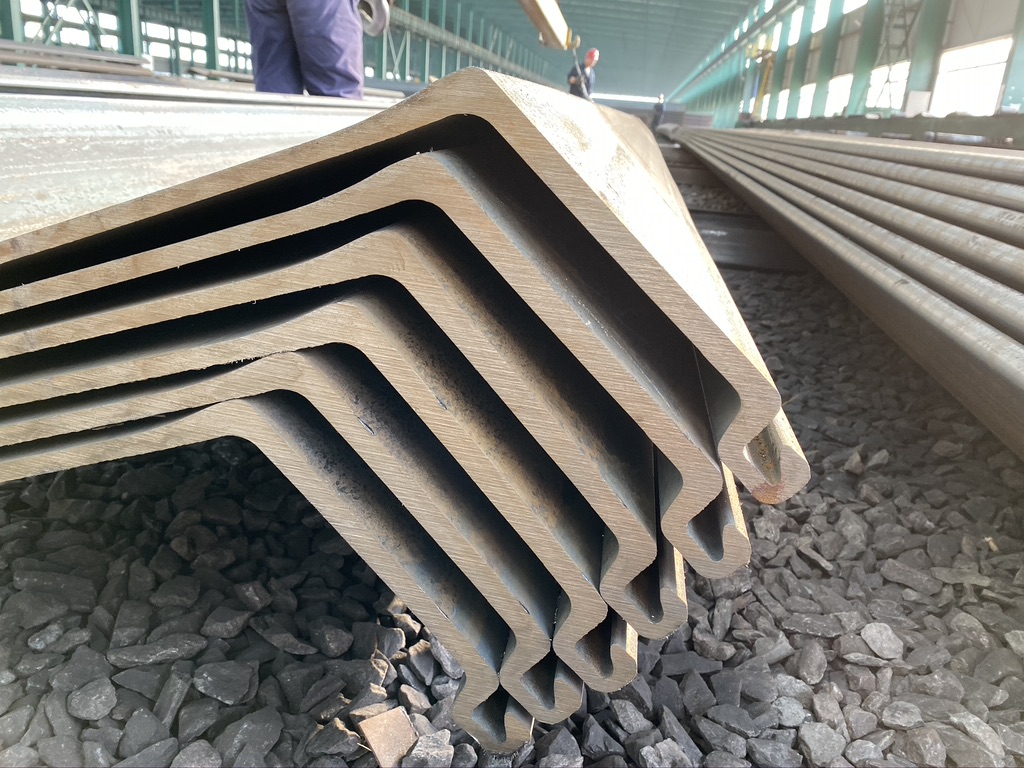

More Steel where it matters

Thickened section provides greater corrosion resistance in seawater environments.

High Tensile Steel of S355GP or Higher

Providing greater strength and bending moment capability as compared to Mid Steel. This durability can be seen in the stiffness and hence have less damage during driving.

Width

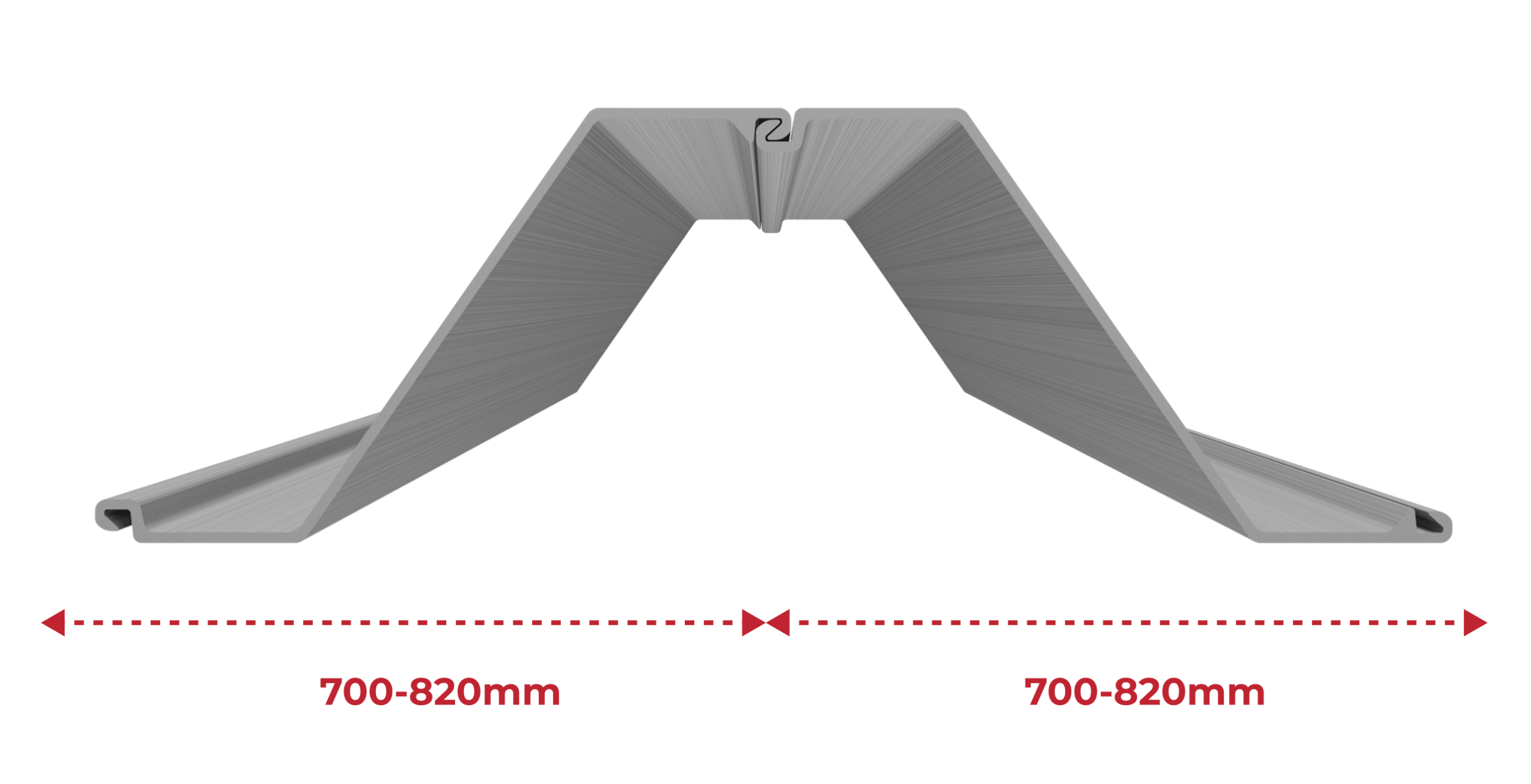

Being 700mm – 820mm width, less number of pieces would be required as compared to 400mm U Shaped Piles. This speeds up the driving time and lessens the cost.

Mlion Hot Rolled
Z Sheet Pile

Perfect for all waterfront, structural and substructure retaining walls

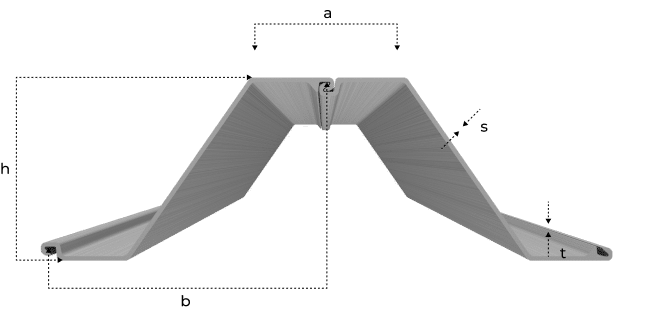

PRODUCT INFORMATION SHEET
Section Width
a
mm		 Width
b
mm		 Height
h
mm		 Thickness
Flange/Web
mm		 Cross Section
Area
cm2/m		 Weight
kg/m		 Weight
kg/m2		 Moment of
Inertia
cm4/m		 Elastic Modulus
cm3/m		 Bending Moment
S355GP
kNm/m		 Coating Area
m2/m
MHZ13-820 820 432 380 7.8/7.7 108.96 70.1 85.5 24911 1311 465.41 1.1
MHZ14-820 820 432 380 8.3/8.2 115.67 74.5 90.8 26413 1390 493.45 1.1
MHZ15-820 820 432 380 8.8/8.7 122.39 78.8 96.1 27920 1470 521.85 1.1
MHZ12-1 770 361 343.5 8.6/8.5 120.8 72.8 94.5 21496 1252 444.46 0.93
MHZ13-1 770 360 344 9.1/9 126.5 76.2 99 22433 1304 462.92 0.93
MHZ14-1 770 360 344.5 9.6/9.5 132.2 79.6 103.4 23370 1357 481.74 0.86
MHZ17-1 700 365 420 8.5/8.4 132.8 73.3 104.7 36425 1735 615.93 0.93
MHZ18-1 700 365 420.5 9.1/9 139.1 76.7 109.6 38001 1807 641.49 0.93
MHZ19-1 700 365 421 9.6/9.5 145.4 80.2 114.6 39578 1880 667.4 0.93
MHZ20-1 700 365 421.5 10.1/10 151.7 83.7 119.5 41155 1953 693.32 0.93
MHZ24-2 700 382 459.2 11.3/11.2 174.4 95.8 136.9 55949 2437 865.14 0.97
MHZ26-2 700 382 460.2 12.3/12.2 187.4 103 147.1 59843 2601 923.36 0.97
MHZ27-1 700 382 460.7 12.8/12.7 193.6 106.4 152 61641 2676 949.98 0.97
MHZ28-2 700 450 461.2 13.3/13.2 200.4 110.1 157.3 63740 2764 981.22 0.97
MHZ36-1 700 450 499.2 15.1/11.2 216.1 118.7 169.6 89753 3596 1276.58 1.03
MHZ38-1 700 450 500.2 16.1/12.2 230.2 126.5 180.7 94984 3798 1348.29 1.03
MHZ40-1 700 450 501.2 17.1/13.2 244.4 134.3 191.8 100219 3999 1419.65 1.03
MHZ42-1 700 450 499.2 18.1/14 260.2 143 204.2 105453 4228 1500.94 1.03
MHZ44-1 700 450 500.2 19.1/15 274.3 150.7 215.3 110942 4436 1574.78 1.03
MHZ46-1 700 450 501.2 20.1/16 288.5 158.5 226.5 116159 4635 1645.43 1.03
MHZ48-1 700 450 503.2 22.1/15 290 159.3 227.6 120467 4788 1699.74 1.02
MHZ50-1 700 450 504.2 23.1/16 303.4 166.7 238.2 125358 4973 1765.42 1.02
MHZ52-1 700 450 505.2 24.1/17 317.2 174.3 249 130403 5162 1832.51 1.02
COMPARISON TO U-TYPE JIS PILES IN SY295 or SYW295
Section Width
a
mm		 Height
h
mm		 Thickness
Flange/Web
mm		 Cross Section
Area
cm2/m		 Weight
kg/m		 Weight
kg/m2		 Moment of
Inertia
cm4/m		 Elastic Modulus
cm3/m		 Bending Moment
S355GP
kNm/m		 Coating Area
m2/m
Type II 400 100 10.5 61.18 48 120 8740 874 257.83 1.33
Type III 400 125 13.0 76.42 60 150 16800 1340 395.3 1.44
Type IIIA 400 150 13.1 74.4 58.4 146 22800 1520 448.4 1.44
Type IV 400 170 15.5 96.99 76.1 190 38600 2270 669.65 1.61
Type VL 500 200 24.3 133.8 105.0 210 63000 3150 929.25 1.75
Type VIL 500 225 28.6 153.0 120.0 240 8600 3820 1126.90 1.83

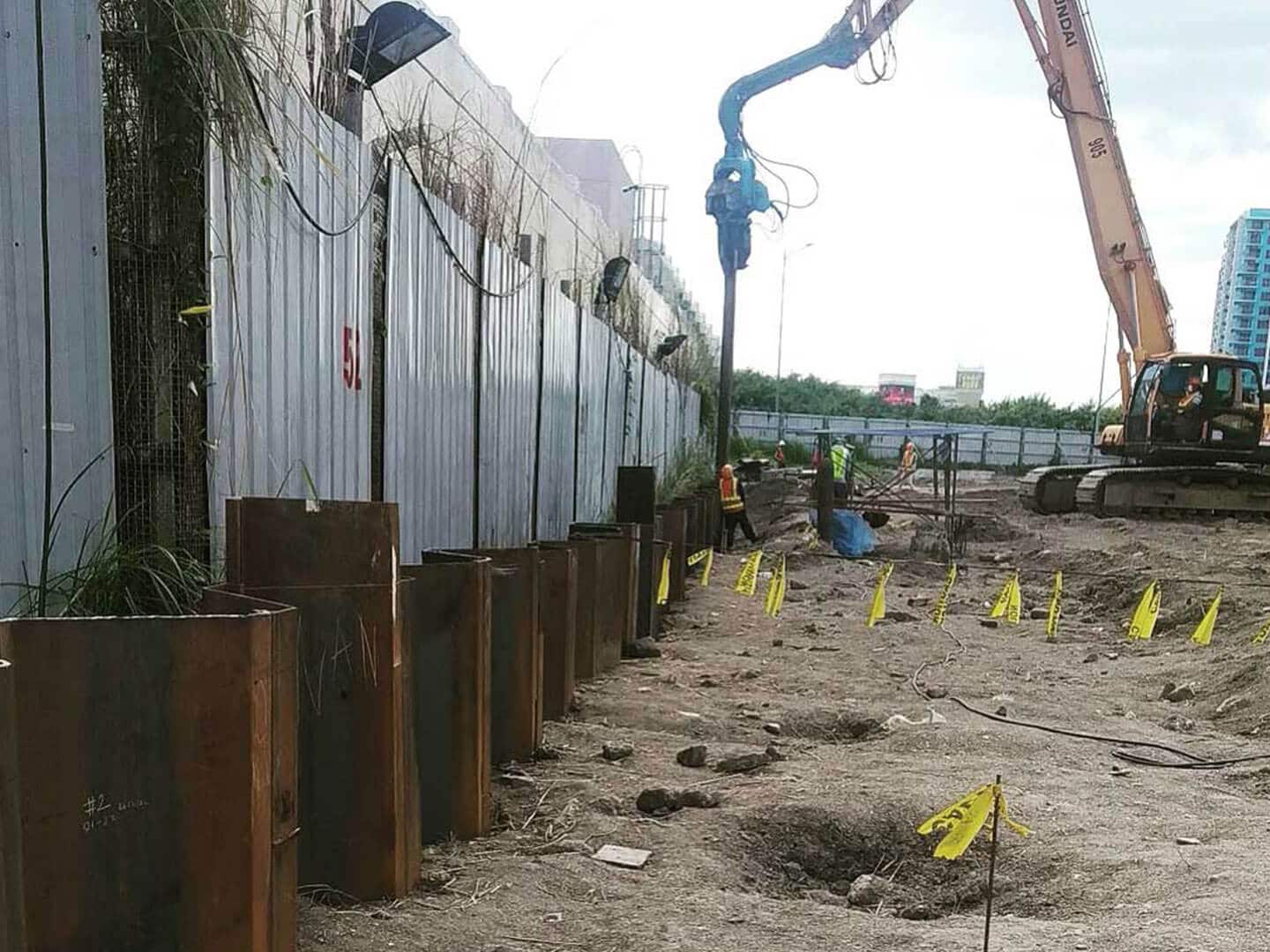

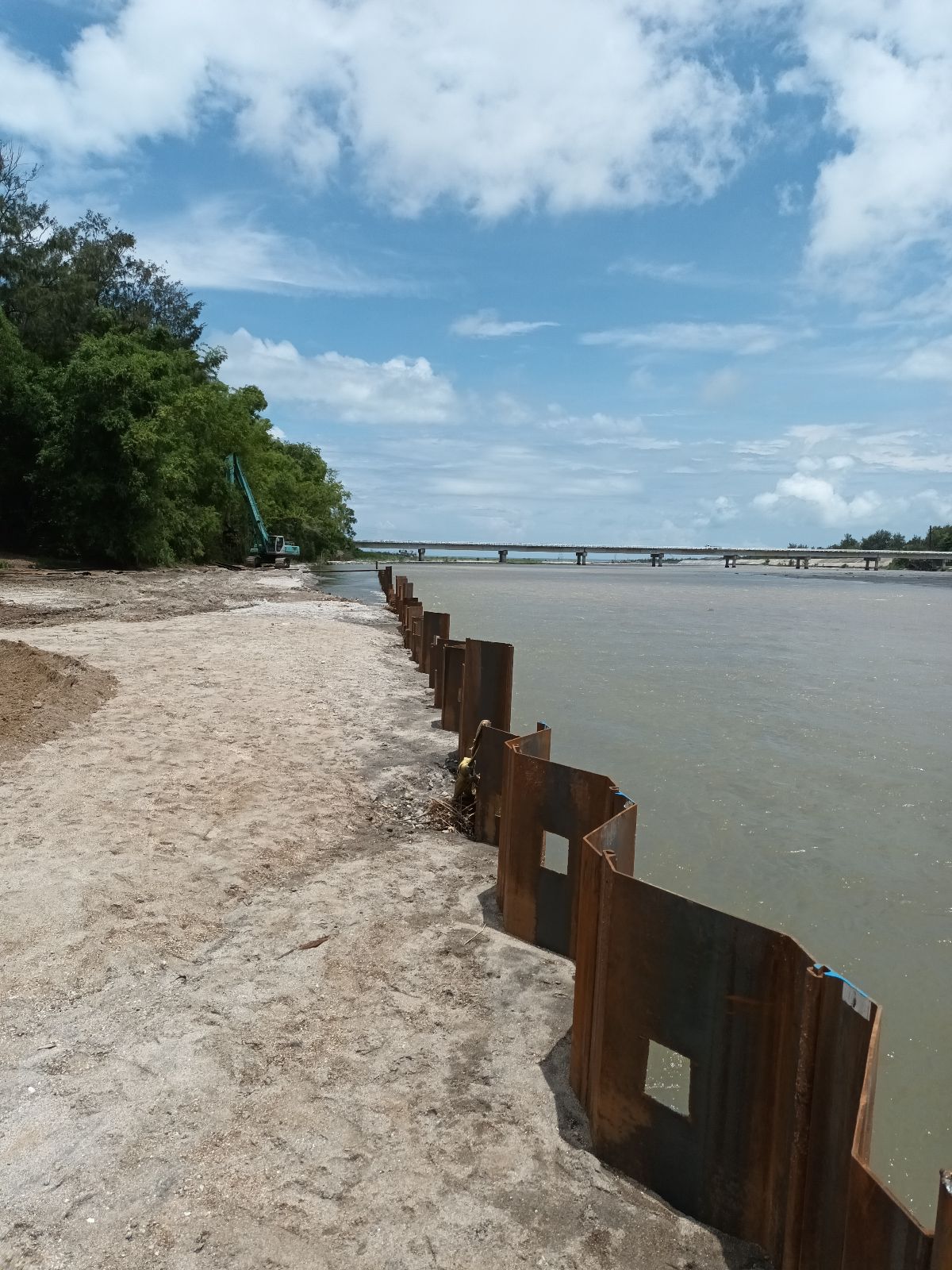

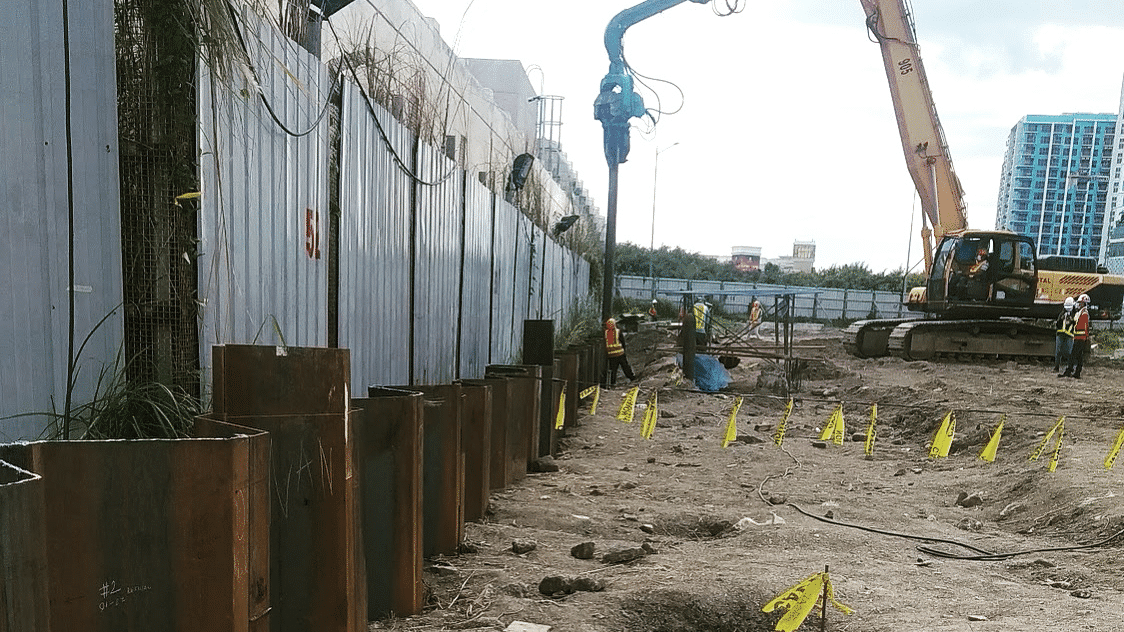

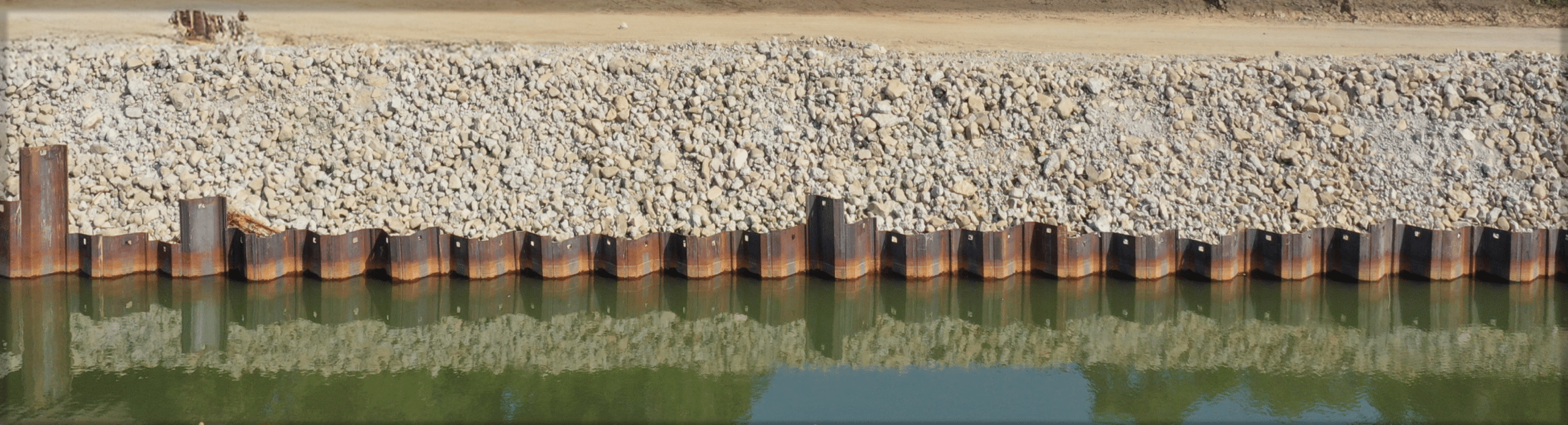

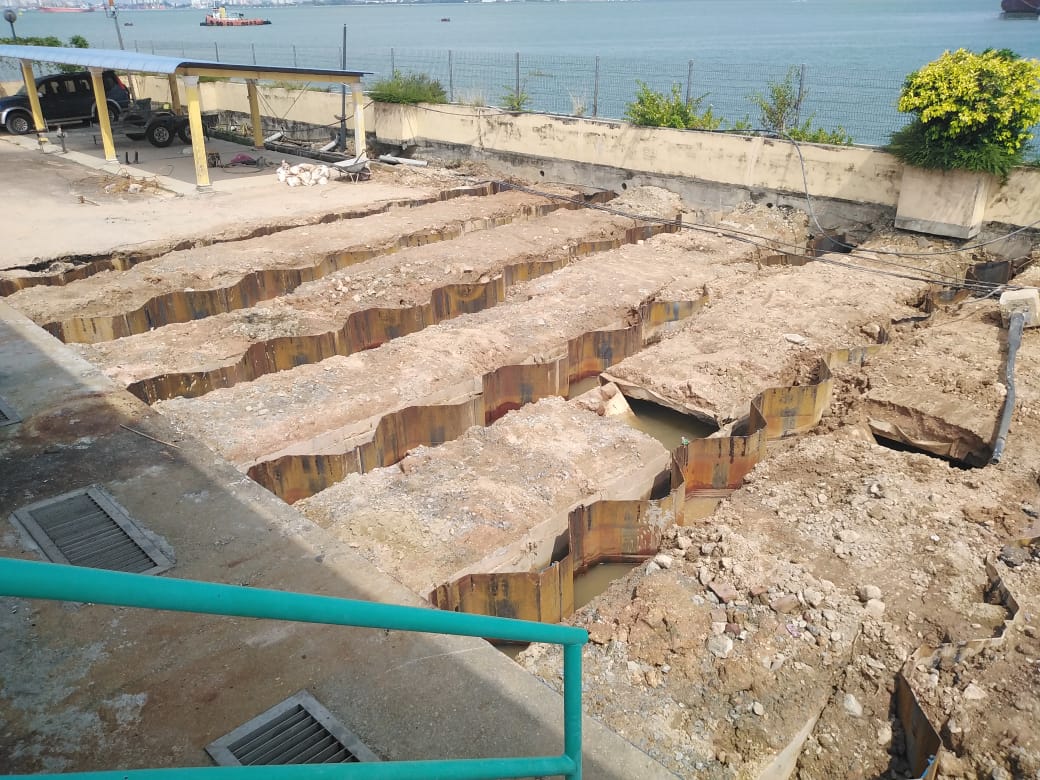

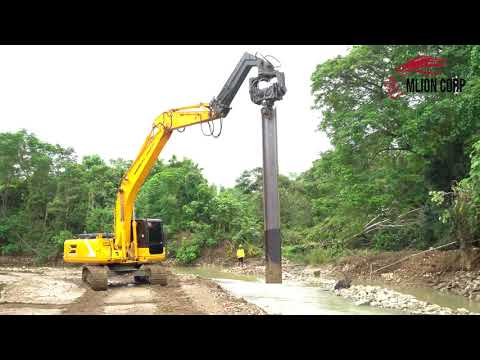

MHZ Sheet Pile Installation
