GEO5 is a comprehensive geotechnical engineering software suite for analysing and designing various geotechnical problems. It focuses on soil, rock, and foundation engineering and offers tools for various geotechnical tasks.
GEO5 is organised into specialised modules dedicated to a specific geotechnical task. This program is used to make advanced designs of embedded retaining walls using the method of elasto-plastic non-linear analysis. It allows the user to model the real structure behavior using stages of construction, to calculate the deformation and pressures acting upon the structure, to verify the internal forces capacity, global stability or to verify cross-sections.
Mlion solutions like the O-Pile and our latest MHZ 820 sheet pile are within their internal catalogue, allowing users to simulate the use of our solutions.
Screenshot of O-Pile in GEO5 2024
Our latest solution, the MHZ 820 sheet pile, boasts greater strength and is currently the widest Hot-Rolled Z-shape sheet Pile on the market.

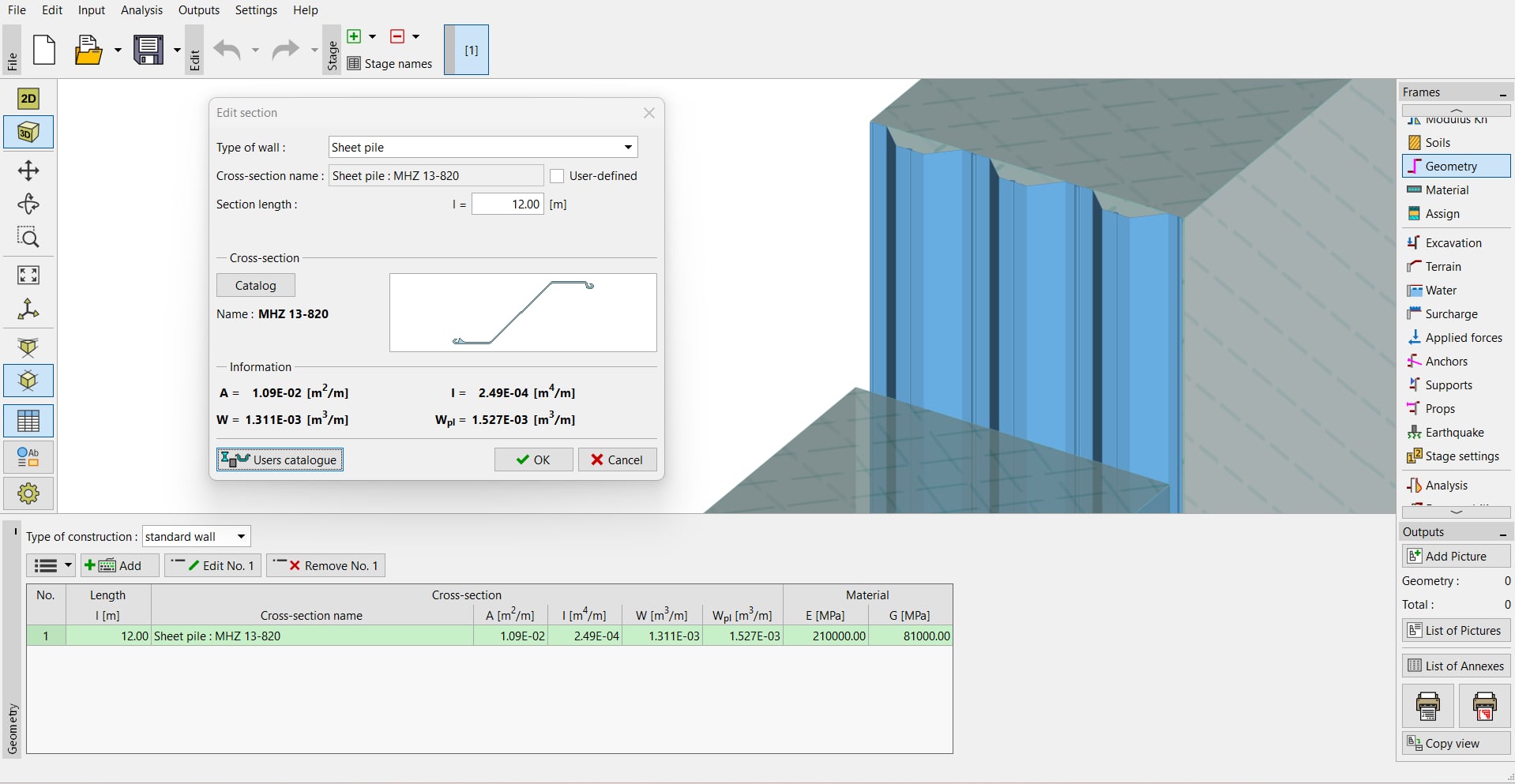

Screenshot of MHZ 820 in GEO5 2024
You can now test out the MHZ 820 sheet pile in the GEO5 simulation and see its advantages firsthand. It helps users evaluate and test sheet pile solutions by allowing them to simulate the behaviour of sheet piles in various geotechnical conditions.
Engineers can model the sheet piles under different loads, soil types, groundwater conditions, and lateral earth pressures to assess stability, deformation, and bending moments. This enables users to experiment with different sheet pile dimensions, materials, and installation depths to optimise their design. By comparing alternative designs and analysing performance, GEO5 ensures that users can choose the most efficient and stable sheet pile solution before proceeding with construction.
We at Mlion are confident that you will like what you see. Our range of Sheet Piles is available in the GEO5 catalogue for your testing.
Check it out for yourself at the link below:
https://www.finesoftware.eu/geotechnical-software/features/manufacturers-catalogs/
