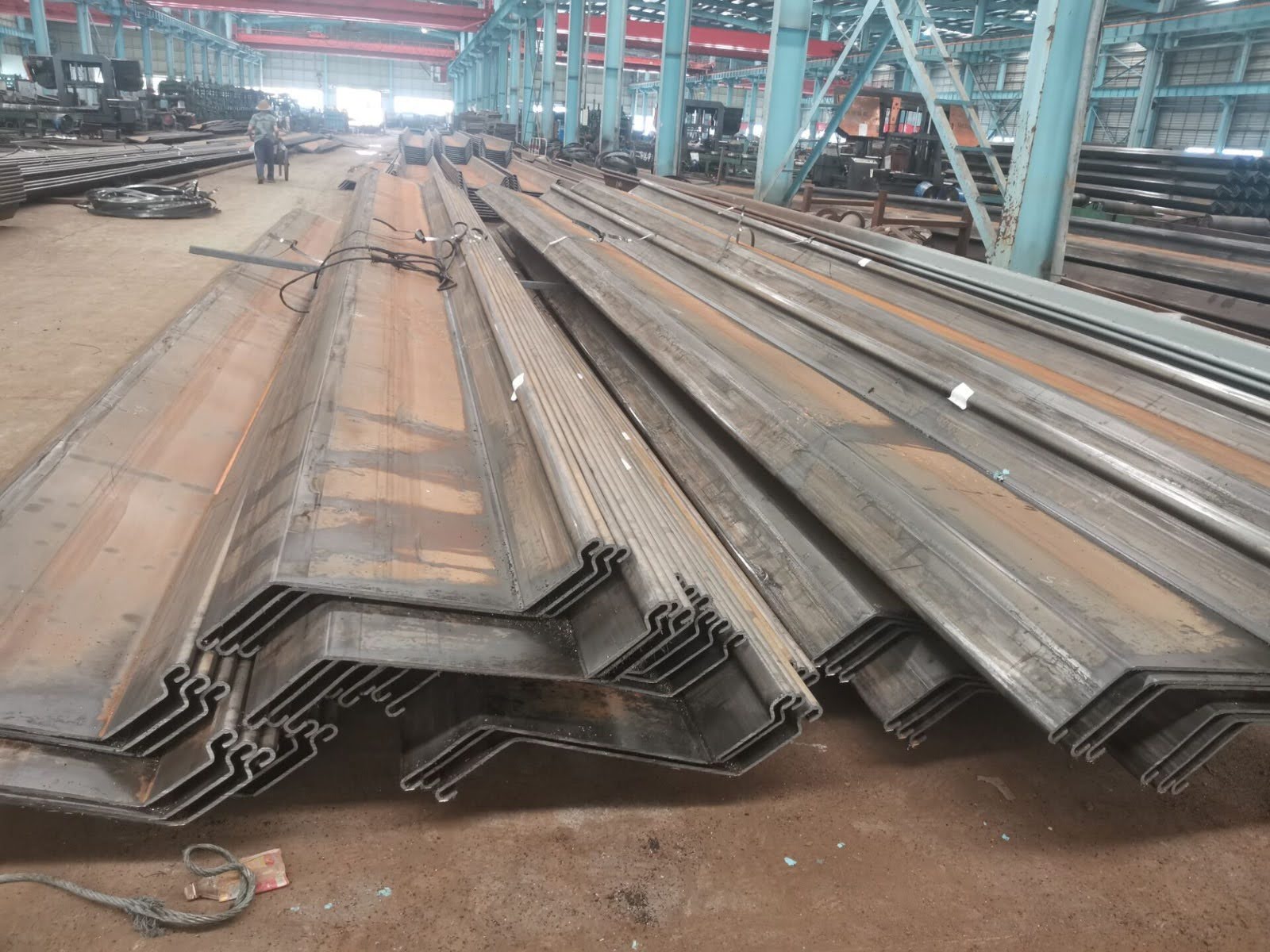

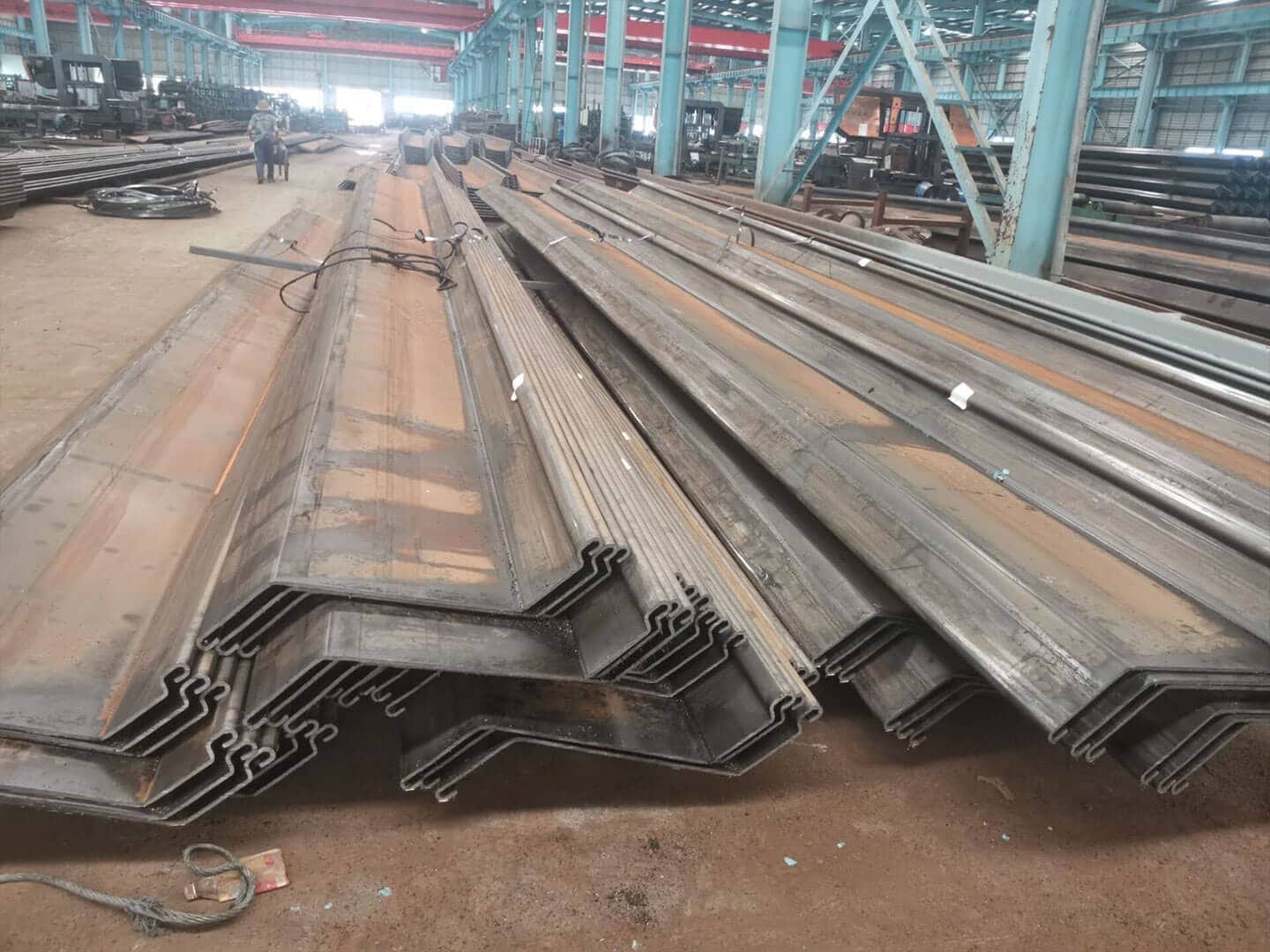

Sheet Piles
Advantages of MMZ sheet piles
- Interlocks located away from the neutral axis
- Large width resulting in good installation performance
- Customization to lengths of up to 35m
- Wide range of variable widths and lengths
- Highly efficient section modulus to mass ratio
- Up to 16mm thickness and section modulus of 5000 cm3/m
Available Steel Grade
- EN 10025: S235 / S275 / S355 / S390 / S420 / S460
- JIS 5528: SY295 / SY390
- ASTM A572: Gr. 43 / Gr. 50 / Gr. 60
- Low Corrosion Steel: ASTM A690 Mariner Steel Grade (345 / 390 / 430)
In 2017, we introduce a new range of MMZ piles which features 700 – 800mm width. This is inline with the trend of moving towards wider and more efficient sections to speed up installation time. Weight have been optimized to provide greater savings compared to standard sections, while retaining the section modulus to meet the design requirements.
PRODUCT INFORMATION SHEET

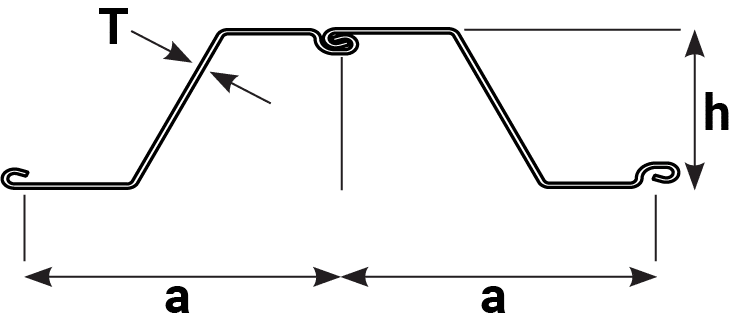

Section | Width a mm |
Height h mm |
Thickness Flange/Web mm |
Section Area cm2/m |
Weight kg/m |
Weight kg/m2 |
Moment of Inertia cm4/m |
Section Modulus cm3/m |
MMZ11-1 | 575 | 260 | 8.8 | 128.7 | 58.1 | 101 | 13860 | 1066 |
MMZ11-2 | 575 | 260 | 9.5 | 138.9 | 63.2 | 109 | 14563 | 1120 |
MMZ12-1 | 670 | 302 | 8.5 | 126.1 | 66.1 | 99 | 18726 | 1239 |
MMZ12-2 | 770 | 344 | 8.5 | 120 | 72.6 | 94.2 | 21413 | 1302 |
MMZ12-3 | 575 | 260 | 10 | 155.9 | 70.4 | 122.4 | 15845 | 1217 |
MMZ12-4 | 700 | 314 | 8.5 | 122.7 | 67.4 | 96.3 | 18889 | 1202 |
MMZ13-1 | 670 | 303 | 9.5 | 136.9 | 72 | 107.5 | 19381 | 1279 |
MMZ13-2 | 770 | 344 | 9 | 125 | 75.6 | 98.1 | 22579 | 1312 |
MMZ13-3 | 575 | 260 | 10.5 | 161 | 72.6 | 126.4 | 16540 | 1272 |
MMZ13-4 | 700 | 315 | 9.5 | 134.6 | 74 | 105.7 | 20537 | 1303 |
MMZ13-5 | 700 | 316 | 10 | 140.4 | 77.2 | 110.2 | 21420 | 1355 |
MMZ13-6 | 650 | 350 | 8 | 119.5 | 61 | 93.8 | 22799 | 1303 |
MMZ14-1 | 670 | 304 | 10.5 | 153.6 | 80.8 | 120.6 | 21220 | 1395 |
MMZ14-2 | 770 | 345 | 9.5 | 131.1 | 79.3 | 102.9 | 23396 | 1355 |
MMZ14-3 | 770 | 345 | 10 | 137.2 | 82.9 | 107.7 | 24315 | 1409 |
MMZ14-4 | 700 | 316 | 10.3 | 146.1 | 80.3 | 114.7 | 22258 | 1407 |
MMZ15-1 | 700 | 420 | 7 | 109.2 | 60 | 85.7 | 31087 | 1480 |
MMZ15-2 | 700 | 450 | 7 | 108.4 | 59.6 | 85.1 | 33203 | 1475 |
MMZ16-1 | 575 | 350 | 8.5 | 141.7 | 63.9 | 111.2 | 28009 | 1600 |
MMZ16-2 | 640 | 400 | 8 | 127.4 | 64 | 100 | 32421 | 1620 |
MMZ17-1 | 630 | 379 | 8.5 | 137.1 | 67.8 | 107.6 | 31592 | 1666 |
MMZ17-2 | 700 | 420 | 8.5 | 133 | 73.1 | 104.4 | 37135 | 1767 |
MMZ17-3 | 575 | 350 | 9 | 148 | 66.8 | 116.2 | 29040 | 1659 |
MMZ17-4 | 575 | 370 | 9 | 148.4 | 67 | 116.5 | 31798 | 1718 |
MMZ17-5 | 575 | 350 | 9.5 | 156.2 | 70.5 | 122.6 | 29796 | 1702 |
MMZ17-6 | 675 | 430 | 8.5 | 133 | 70.5 | 104.4 | 36820 | 1712 |
MMZ18-1 | 630 | 380 | 9.5 | 150.4 | 74.4 | 118.1 | 34220 | 1801 |
MMZ18-2 | 700 | 420 | 9 | 139.2 | 76.5 | 109.3 | 37991 | 1808 |
MMZ18-3 | 575 | 350 | 9.8 | 160.1 | 72.3 | 125.7 | 30962 | 1767 |
MMZ18-4 | 575 | 350 | 10 | 163.4 | 73.8 | 128.3 | 31578 | 1804 |
MMZ18-5 | 675 | 420 | 9 | 141.1 | 74.8 | 110.8 | 37990 | 1808 |
MMZ18-6 | 630 | 381 | 9.9 | 157.2 | 77.8 | 123.4 | 35721 | 1874 |
MMZ18-7 | 700 | 440 | 9 | 140.9 | 77.4 | 110.6 | 41587 | 1890 |
MMZ19-1 | 630 | 381 | 10.2 | 163.8 | 81 | 128.6 | 35803 | 1879 |
MMZ19-2 | 700 | 421 | 9.5 | 145.6 | 80 | 114.3 | 39592 | 1880 |
MMZ19-3 | 675 | 390 | 10 | 157.8 | 83.6 | 123.9 | 36367 | 1865 |
MMZ20-1 | 700 | 421 | 10 | 152 | 83.5 | 119 | 41048 | 1950 |
MMZ23-1 | 575 | 350 | 11 | 181 | 81.8 | 142.3 | 40600 | 2320 |
MMZ24-1 | 700 | 459 | 11.2 | 174 | 95.7 | 136.7 | 55768 | 2430 |
MMZ19-3 | 675 | 390 | 10 | 156.6 | 83 | 122.9 | 37475 | 1921 |
MMZ20-1 | 700 | 421 | 9.9 | 152 | 83.5 | 119.3 | 41031 | 1948 |
MMZ21-1 | 575 | 350 | 11 | 189.2 | 85.4 | 148.5 | 36631 | 2093 |
MMZ22-1 | 575 | 350 | 11.5 | 199.1 | 89.9 | 156.3 | 37913 | 2166 |
MMZ23-1 | 575 | 350 | 12 | 208.4 | 94.1 | 163.6 | 39530 | 2258 |
MMZ24-1 | 700 | 449 | 10.5 | 172.4 | 94.7 | 135.3 | 55256 | 2460 |
MMZ24-2 | 575 | 350 | 12.5 | 219.5 | 99.1 | 172.3 | 41558 | 2374 |
MMZ24-3 | 700 | 480 | 10 | 163.3 | 89.7 | 128.2 | 58912 | 2454 |
MMZ24-4 | 700 | 540 | 9.5 | 156.7 | 86.1 | 123 | 66447 | 2460 |
MMZ25-1 | 630 | 440 | 10.5 | 180.8 | 89.4 | 141.9 | 54750 | 2488 |
MMZ25-2 | 675 | 440 | 11 | 183.4 | 97.2 | 144 | 55500 | 2522 |
MMZ25-3 | 575 | 350 | 13 | 227.4 | 102.6 | 178.5 | 43459 | 2482 |
MMZ26-1 | 630 | 470 | 11.5 | 197.7 | 97.9 | 155.2 | 63318 | 2695 |
MMZ26-2 | 700 | 460 | 11.5 | 187.3 | 102.9 | 147 | 59887 | 2603 |
MMZ26-3 | 675 | 430 | 12 | 199.1 | 105.5 | 156.3 | 56023 | 2605 |
MMZ26-4 | 700 | 500 | 10 | 167.3 | 91.9 | 131.3 | 65322 | 2612 |
MMZ26-5 | 700 | 470 | 10.5 | 176.3 | 96.9 | 138.4 | 62047 | 2640 |
MMZ27-1 | 675 | 460 | 12 | 200.3 | 106.1 | 157.2 | 62336 | 2709 |
MMZ27-2 | 630 | 480 | 10.5 | 185 | 91.5 | 145.2 | 65379 | 2723 |
MMZ28-1 | 630 | 440 | 12.5 | 213.6 | 105.7 | 167.7 | 60621 | 2754 |
MMZ28-2 | 700 | 461 | 13.2 | 214.6 | 118 | 168.5 | 65537 | 2755 |
MMZ28-3 | 700 | 461 | 12 | 200.1 | 110 | 157.1 | 64901 | 2815 |
MMZ28-4 | 700 | 500 | 11.2 | 188.5 | 103.6 | 148 | 70005 | 2800 |
MMZ28-5 | 700 | 480 | 11.5 | 189.4 | 104.1 | 148.7 | 67502 | 2812 |
MMZ28-6 | 700 | 481 | 11 | 184.5 | 101.4 | 144.8 | 66546 | 2766 |
MMZ32-1 | 675 | 485 | 12 | 212.1 | 112.4 | 166.5 | 77985 | 3215 |
MMZ34-1 | 675 | 500 | 12 | 215.9 | 114.4 | 169.5 | 84865 | 3394 |
MMZ35-1 | 675 | 500 | 12.5 | 224.3 | 118.9 | 176.1 | 87685 | 3506 |
MMZ36-1 | 675 | 485 | 13 | 234.1 | 124.1 | 183.8 | 87785 | 3620 |
MMZ36-2 | 700 | 540 | 12.2 | 215.9 | 118.6 | 169.5 | 97450 | 3609 |
MMZ36-3 | 630 | 490 | 12.5 | 235.5 | 116.5 | 184.9 | 88299 | 3604 |
MMZ37-1 | 700 | 500 | 13 | 231.8 | 127.4 | 182 | 92562 | 3702 |
MMZ37-2 | 675 | 485 | 13.5 | 242.5 | 128.5 | 190.4 | 89960 | 3709 |
MMZ38-1 | 675 | 485 | 14 | 249.8 | 132.4 | 196.1 | 91989 | 3793 |
MMZ38-2 | 700 | 570 | 13 | 230.1 | 126.4 | 180.6 | 109180 | 3830 |
MMZ39-1 | 700 | 560 | 13.5 | 239.9 | 131.8 | 188.3 | 110180 | 3935 |
MMZ40-1 | 700 | 550 | 13.8 | 244.2 | 134.2 | 191.7 | 110027 | 4000 |
MMZ41-1 | 700 | 540 | 14 | 251.8 | 138.4 | 197.7 | 111480 | 4128 |
MMZ42-1 | 700 | 550 | 14 | 253.1 | 139.1 | 198.7 | 115747 | 4209 |
MMZ42-2 | 700 | 550 | 14.2 | 258.7 | 142.1 | 203.1 | 115660 | 4205 |
MMZ43-1 | 700 | 560 | 14 | 253.9 | 139.5 | 199.3 | 119843 | 4280 |
MMZ43-2 | 700 | 560 | 13.5 | 248.4 | 136.5 | 195 | 120877 | 4316 |
MMZ44-1 | 700 | 540 | 14.5 | 271.3 | 149.1 | 213 | 118995 | 4403 |
MMZ44-2 | 700 | 550 | 14 | 256.9 | 141.2 | 201.7 | 121091 | 4403 |
MMZ46-1 | 580 | 540 | 14.2 | 291.2 | 132.6 | 228.6 | 124708 | 4618 |
MMZ46-2 | 700 | 525 | 15.2 | 287 | 157.7 | 225.3 | 121241 | 46.16 |
MMZ46-3 | 700 | 560 | 15 | 281 | 154.4 | 220.6 | 129611 | 4628 |
MMZ46-4 | 700 | 600 | 14 | 258.2 | 141.9 | 202.7 | 138283 | 4609 |
MMZ48-1 | 580 | 570 | 15 | 306.6 | 139.6 | 240.7 | 137234 | 4814 |
MMZ48-2 | 580 | 540 | 15 | 306/6 | 139.6 | 240.7 | 137234 | 4814 |
MMZ48-3 | 700 | 550 | 15.2 | 288.4 | 158.5 | 226.4 | 132187 | 4805 |
MMZ50-1 | 580 | 580 | 16 | 322.2 | 146.7 | 252.9 | 145656 | 5022 |
MMZ50-2 | 580 | 530 | 15.5 | 316.9 | 144.3 | 248.8 | 132744 | 5008 |
MMZ50-3 | 700 | 530 | 16 | 302.5 | 166.3 | 237.5 | 133465 | 5036 |
MMZ50-4 | 700 | 560 | 16 | 298.5 | 164 | 234.3 | 140578 | 5020 |
MMZ50-5 | 580 | 520 | 15 | 322.3 | 146.7 | 253 | 133709 | 5142 |
MMZ52-1 | 700 | 550 | 16 | 305.2 | 167.7 | 239.6 | 143742 | 5226 |
