MMU
MMU

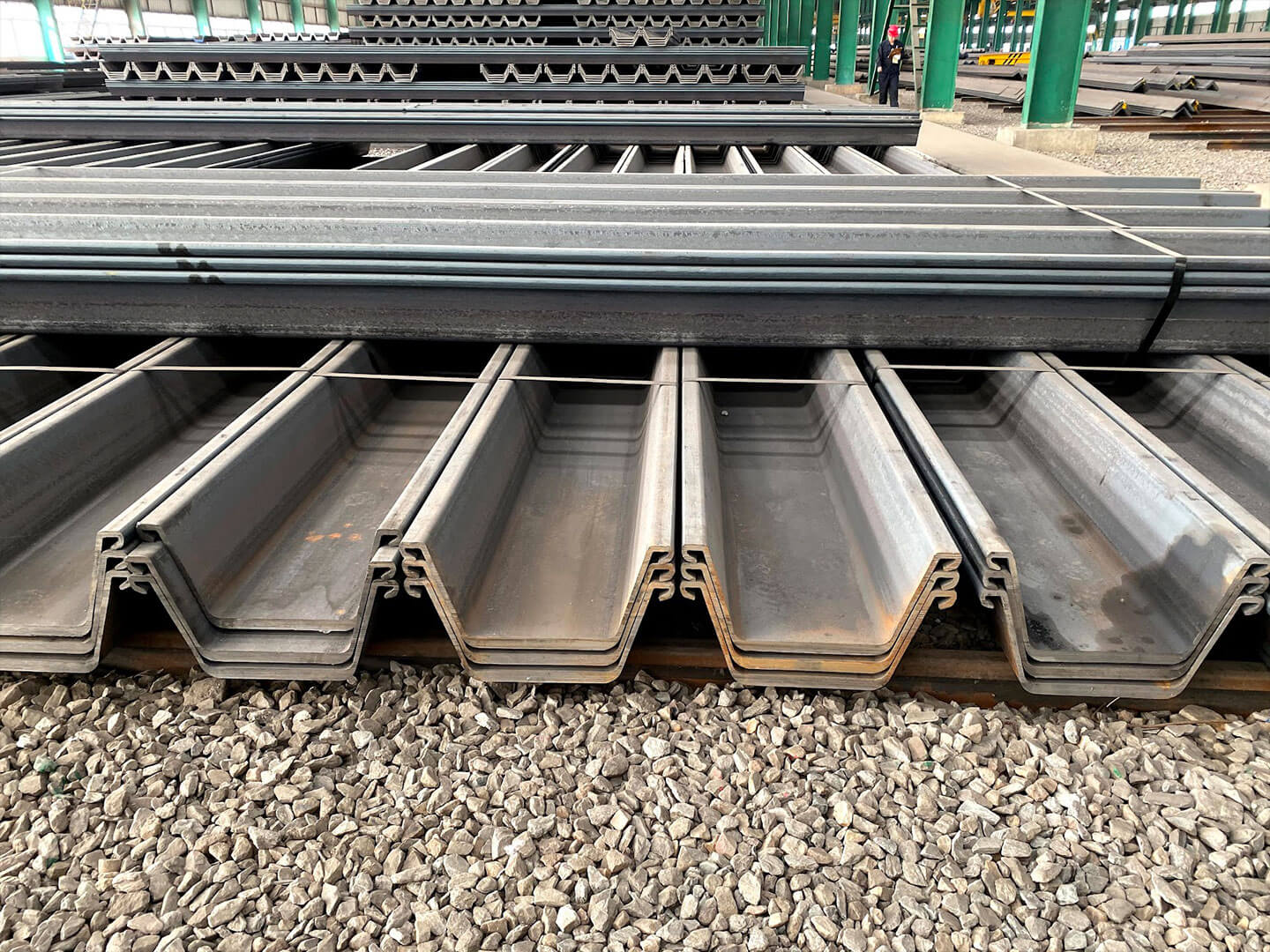

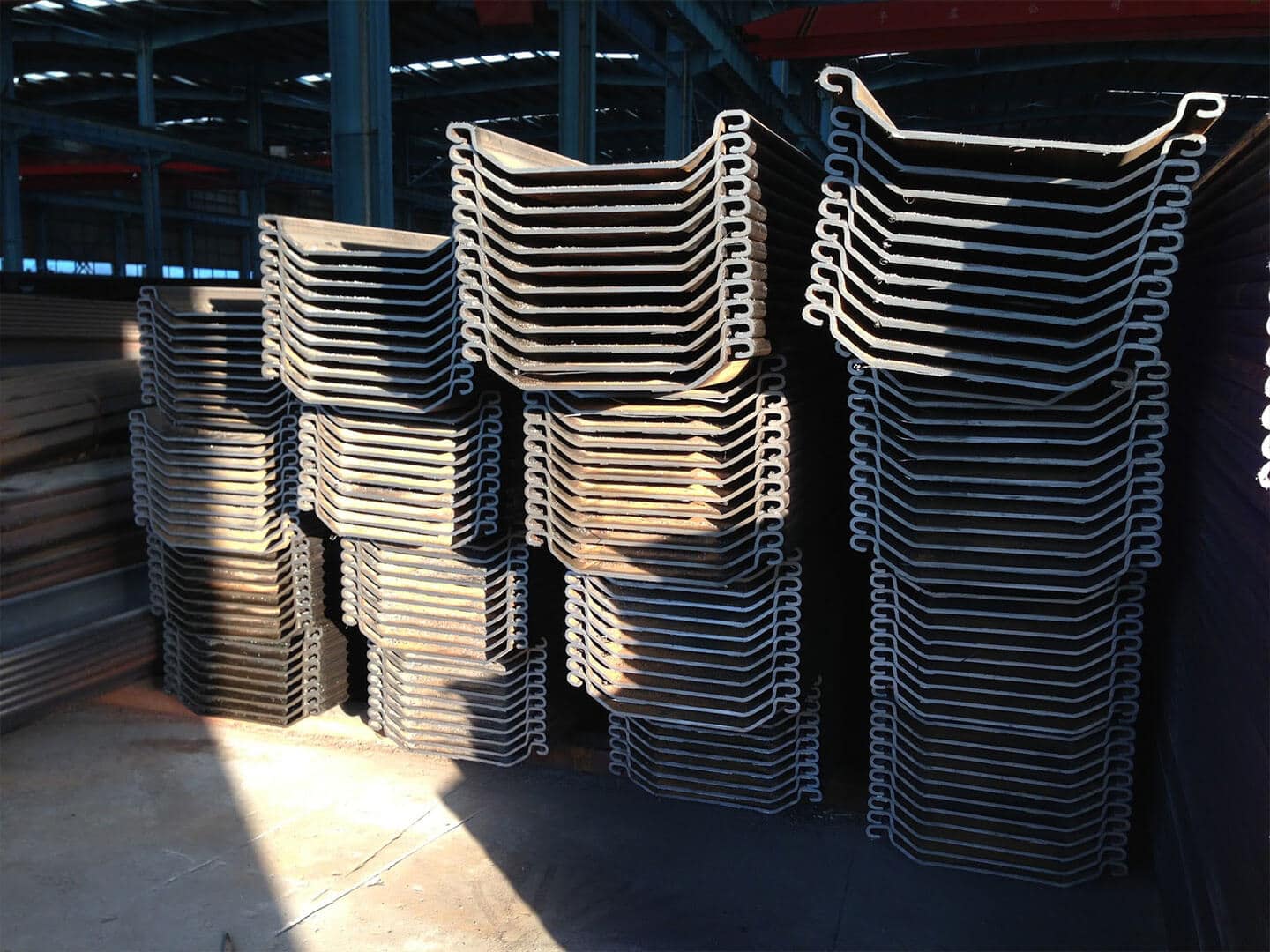

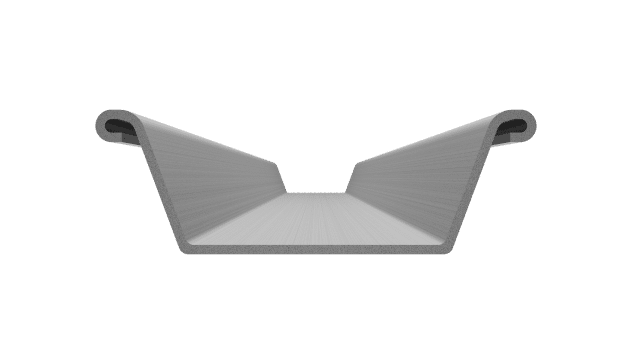

Sheet Pile

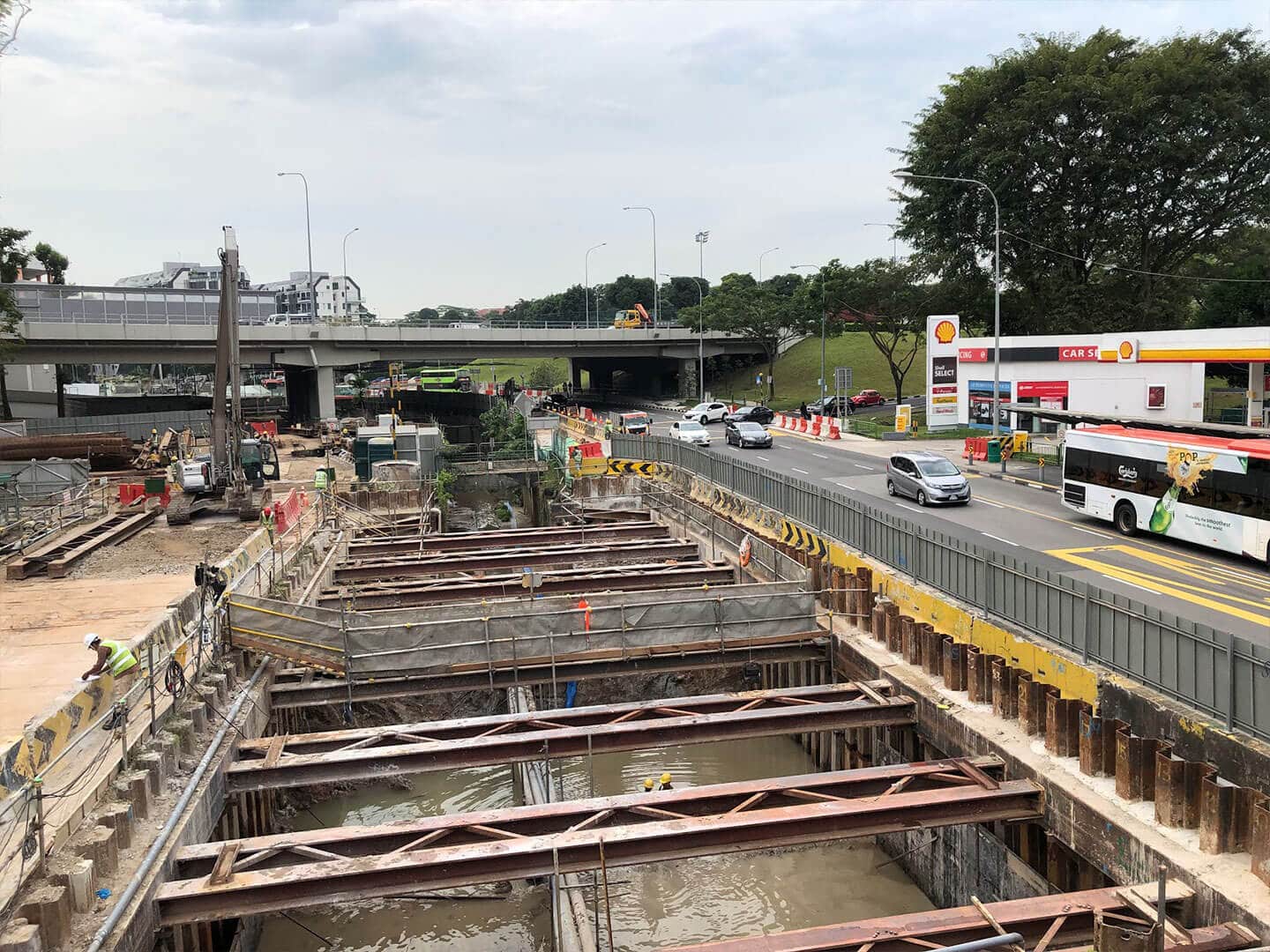

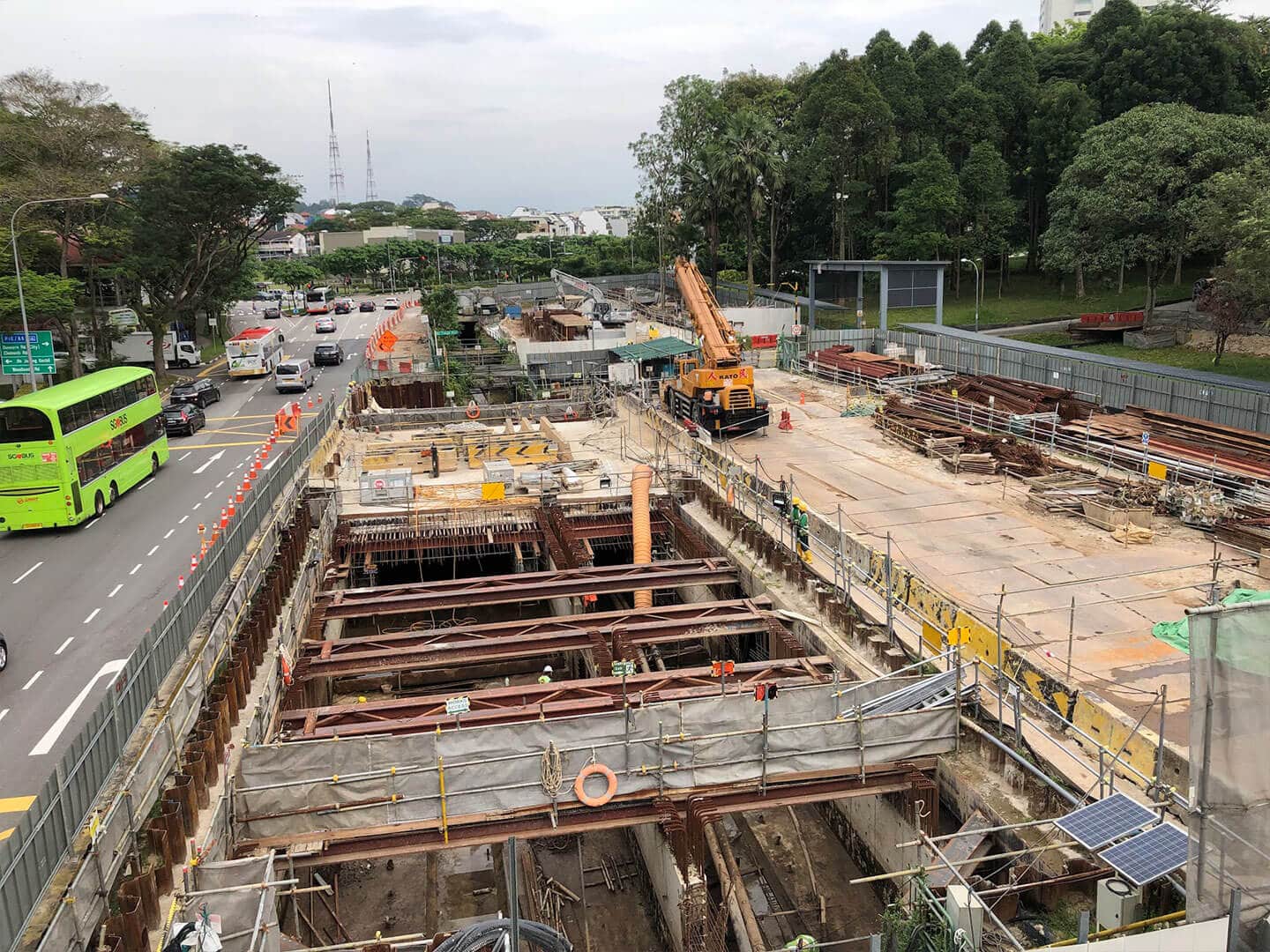

Advantages of MMU Sheet Pile
- Wide range of up to 4600 cm3/m
- Ease of piling and handling
- Good for re-use and temporary works
PRODUCT INFORMATION SHEET

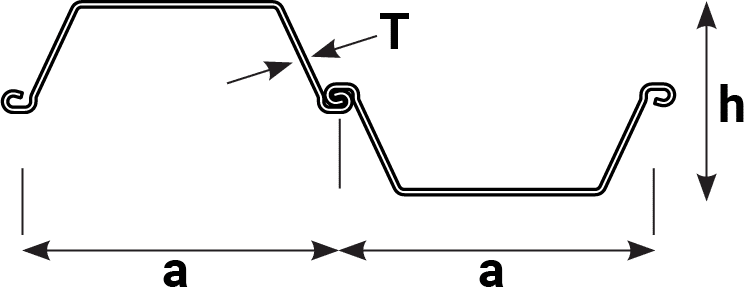

Section | Width a mm |
Height h mm |
Thickness Flange/Web mm |
Section Area cm2/m |
Weight kg/m |
Weight kg/m2 |
Moment of Inertia cm4/m |
Section Modulus cm3/m |
MMU5-1 | 600 | 150 | 8.5 | 119.7 | 56.4 | 94 | 3800 | 508 |
MMU5-2 | 600 | 150 | 9.5 | 135.7 | 63.9 | 106.5 | 4162 | 554 |
MMU5-3 | 400 | 210 | 6 | 104.5 | 32.8 | 82 | 5621 | 535 |
MMU6-1 | 600 | 180 | 8.5 | 125.1 | 58.9 | 98.2 | 5464 | 606 |
MMU6-2 | 600 | 280 | 6 | 89.6 | 42.2 | 70.3 | 9038 | 645 |
MMU6-3 | 600 | 309 | 6 | 89 | 41.9 | 69.9 | 10005 | 647 |
MMU7-1 | 600 | 300 | 6 | 92.9 | 43.7 | 72.9 | 10508 | 700 |
MMU7-2 | 600 | 340 | 6 | 95 | 44.7 | 74.6 | 13273 | 780 |
MMU7-3 | 600 | 310 | 6.4 | 93.6 | 44.1 | 73.5 | 10539 | 680 |
MMU7-4 | 600 | 320 | 6.5 | 98.2 | 46.3 | 77.1 | 11872 | 741 |
MMU7-5 | 600 | 325 | 6.5 | 100.8 | 47.2 | 79.1 | 15540 | 771 |
MMU8-1 | 600 | 360 | 6 | 96.1 | 45.2 | 75.4 | 14749 | 819 |
MMU8-2 | 600 | 340 | 6.5 | 102.2 | 48.1 | 80.2 | 14888 | 875 |
MMU8-3 | 600 | 325 | 7 | 109.9 | 51.8 | 86.3 | 14258 | 876 |
MMU8-4 | 750 | 320 | 6 | 87.1 | 51.3 | 68.4 | 13025 | 813 |
MMU8-5 | 600 | 320 | 7 | 103.1 | 48.5 | 80.9 | 12338 | 770 |
MMU8-6 | 600 | 325 | 7.3 | 107.8 | 50.8 | 84.6 | 13355 | 821 |
MMU9-1 | 600 | 360 | 6.5 | 105.1 | 49.5 | 82.5 | 17360 | 964 |
MMU9-2 | 600 | 330 | 7.5 | 115.8 | 54.5 | 90.9 | 15313 | 927 |
MMU9-3 | 750 | 320 | 7 | 101.8 | 59.9 | 79.9 | 14507 | 906 |
MMU9-4 | 600 | 355 | 7 | 111.7 | 52.6 | 87.7 | 16823 | 947 |
MMU10-1 | 600 | 300 | 7 | 114.4 | 53.9 | 89.8 | 19078 | 1031 |
MMU10-2 | 600 | 310 | 9 | 141.7 | 66.7 | 111.2 | 16056 | 1035 |
MMU11-1 | 600 | 380 | 7.5 | 123.3 | 58.1 | 96.8 | 22313 | 1174 |
MMU11-2 | 600 | 360 | 8 | 131.6 | 62 | 103.3 | 20095 | 1115 |
MMU11-3 | 600 | 400 | 7 | 117.5 | 55.3 | 92.2 | 23716 | 1185 |
MMU11-4 | 575 | 360 | 8 | 133.8 | 60.4 | 105 | 19890 | 1104 |
MMU11-5 | 600 | 310 | 9.5 | 148.8 | 70.1 | 116.8 | 17160 | 1106 |
MMU12-1 | 600 | 380 | 8.5 | 140.4 | 66.1 | 110.2 | 22936 | 1206 |
MMU12-2 | 500 | 360 | 8 | 143.9 | 56.5 | 113 | 20701 | 1150 |
MMU12-3 | 700 | 440 | 7.5 | 115.8 | 64.2 | 90.9 | 26978 | 1225 |
MMU12-4 | 600 | 360 | 9 | 147.8 | 69.6 | 116 | 22670 | 1259 |
MMU12-5 | 450 | 360 | 9.5 | 182 | 64.3 | 142.9 | 24930 | 1384 |
MMU12-6 | 600 | 360 | 8.5 | 140.4 | 66.1 | 110.2 | 21600 | 1200 |
MMU13-1 | 675 | 420 | 7.5 | 123.6 | 65.6 | 97 | 28931 | 1378 |
MMU13-2 | 600 | 310 | 10 | 163.9 | 77.2 | 128.7 | 19552 | 1260 |
MMU13-3 | 500 | 355 | 8.5 | 154.6 | 60.7 | 121.4 | 21816 | 1229 |
MMU13-4 | 700 | 440 | 8 | 126.6 | 69.6 | 99.4 | 28765 | 1307 |
MMU13-5 | 700 | 400 | 10 | 159.7 | 87.8 | 125.4 | 31012 | 1550 |
MMU13-6 | 500 | 340 | 10 | 180.1 | 70.7 | 141.4 | 22195 | 1305 |
MMU13-7 | 600 | 360 | 10 | 163.4 | 77 | 128.3 | 23114 | 1283 |
MMU13-8 | 575 | 360 | 10 | 166.1 | 75 | 130.4 | 22786 | 1265 |
MMU13-9 | 400 | 290 | 11.5 | 233.8 | 73.4 | 183.5 | 19546 | 1347 |
MMU13-10 | 600 | 408 | 7.5 | 127.4 | 60 | 100 | 26105 | 1279 |
MMU13-11 | 600 | 400 | 8 | 138.6 | 65.3 | 108.8 | 26720 | 1335 |
MMU14-1 | 750 | 445 | 8 | 126 | 74.2 | 98.9 | 31802 | 1429 |
MMU14-2 | 675 | 435 | 8 | 133.1 | 70.5 | 104.5 | 31589 | 1451 |
MMU14-3 | 750 | 408 | 8.5 | 132.2 | 77.9 | 103.8 | 29055 | 1424 |
MMU14-4 | 600 | 430 | 8 | 136.4 | 64.3 | 107.1 | 30273 | 1407 |
MMU15-1 | 675 | 420 | 8.5 | 142.2 | 75.3 | 111.6 | 31944 | 1520 |
MMU15-2 | 500 | 360 | 10 | 183.7 | 72.1 | 144.2 | 25820 | 1434 |
MMU15-3 | 600 | 422 | 8.2 | 145.9 | 68.7 | 114.5 | 32633 | 1546 |
MMU16-1 | 750 | 440 | 9 | 143.6 | 84.5 | 112.7 | 35660 | 1620 |
MMU16-2 | 600 | 380 | 9.5 | 156.7 | 73.8 | 123 | 30400 | 1600 |
MMU16-3 | 600 | 420 | 9 | 159.4 | 75.1 | 125.1 | 33916 | 1615 |
MMU16-4 | 700 | 450 | 9 | 148 | 81.4 | 116.2 | 36787 | 1635 |
MMU16-5 | 650 | 480 | 8 | 141.7 | 72.3 | 111.2 | 40508 | 1687 |
MMU16-6 | 750 | 411 | 9.3 | 146.5 | 86.3 | 115 | 33230 | 1616 |
MMU16-7 | 600 | 430 | 8.5 | 154.1 | 72.6 | 121 | 35930 | 1670 |
MMU17-1 | 750 | 430 | 9.5 | 151.3 | 89.1 | 118.8 | 37094 | 1724 |
MMU17-2 | 500 | 340 | 11.5 | 220.9 | 86.7 | 173.4 | 28257 | 1662 |
MMU17-3 | 650 | 500 | 8 | 140.1 | 71.5 | 110 | 41197 | 1647 |
MMU17-4 | 600 | 460 | 8.5 | 153.9 | 72.5 | 120.8 | 38299 | 1665 |
MMU18-1 | 750 | 460 | 9 | 148.8 | 87.6 | 116.8 | 41641 | 1810 |
MMU18-2 | 600 | 460 | 9 | 163.3 | 76.9 | 128.2 | 41410 | 1801 |
MMU18-3 | 600 | 460 | 9.5 | 170.1 | 80.1 | 133.5 | 42006 | 1825 |
MMU18-4 | 750 | 441 | 9.3 | 150.3 | 88.5 | 118 | 39296 | 1782 |
MMU18-5 | 600 | 430 | 8.5 | 154.1 | 72.6 | 121 | 35930 | 1670 |
MMU18-6 | 600 | 435 | 9.3 | 187 | 88.1 | 146.8 | 41781 | 1921 |
MMU18-7 | 600 | 430 | 9 | 163.3 | 76.9 | 128.2 | 38919 | 1810 |
MMU20-1 | 750 | 460 | 10 | 164.6 | 96.9 | 129.2 | 44916 | 1952 |
MMU20-2 | 600 | 450 | 10 | 181.5 | 85.5 | 142.5 | 42013 | 1867 |
MMU20-3 | 600 | 450 | 10.5 | 189.2 | 89.1 | 148.5 | 43245 | 1921 |
MMU20-4 | 750 | 480 | 10.5 | 173.4 | 102.1 | 136.1 | 49525 | 2063 |
MMU20-5 | 700 | 480 | 10 | 179.2 | 98.5 | 140.7 | 48911 | 2037 |
MMU20-6 | 650 | 540 | 8 | 150.1 | 76.6 | 117.8 | 54535 | 2019 |
MMU20-7 | 600 | 460 | 9.5 | 172.2 | 81.1 | 135.2 | 44048 | 1915 |
MMU20-8 | 600 | 470 | 9.5 | 176.7 | 83.2 | 138.7 | 47676 | 2028 |
MMU21-1 | 750 | 500 | 10 | 169.2 | 99.6 | 132.8 | 53069 | 2122 |
MMU21-2 | 600 | 500 | 9.5 | 175.2 | 82.5 | 137.5 | 50293 | 2011 |
MMU21-3 | 400 | 420 | 10.5 | 247.4 | 77.7 | 194.2 | 43670 | 2078 |
MMU21-4 | 600 | 470 | 9.2 | 173.9 | 81.9 | 136.5 | 48615 | 2068 |
MMU22-1 | 600 | 500 | 10 | 191.1 | 90 | 150 | 55161 | 2205 |
MMU22-2 | 600 | 490 | 9.5 | 182.8 | 86.1 | 143.5 | 54083 | 2206 |
MMU22-3 | 600 | 510 | 10 | 192 | 90.4 | 150.7 | 59635 | 2338 |
MMU23-1 | 700 | 500 | 10.5 | 191.7 | 105.4 | 150.5 | 56811 | 2272 |
MMU23-2 | 650 | 540 | 9 | 172 | 87.8 | 135 | 62640 | 2320 |
MMU23-3 | 750 | 480 | 10.5 | 180.4 | 106.2 | 141.6 | 54701 | 2278 |
MMU23-4 | 600 | 450 | 12 | 227.8 | 107.3 | 178.8 | 51450 | 2286 |
MMU23-5 | 750 | 505 | 10 | 173.4 | 102.1 | 136.1 | 57409 | 2274 |
MMU25-1 | 750 | 500 | 11.5 | 200.6 | 118.1 | 157.5 | 62563 | 2502 |
MMU25-2 | 600 | 490 | 11.5 | 224.7 | 105.8 | 176.4 | 61535 | 2511 |
MMU25-3 | 500 | 450 | 12 | 259.9 | 102 | 204 | 56224 | 2500 |
MMU25-4 | 750 | 510 | 10.6 | 187.5 | 110.4 | 147.2 | 64086 | 2513 |
MMU26-1 | 750 | 500 | 12 | 212 | 124.8 | 166.4 | 65330 | 2612 |
MMU26-2 | 500 | 450 | 12.5 | 271 | 106.4 | 212.7 | 57454 | 2552 |
MMU26-3 | 650 | 540 | 10 | 193.2 | 98.6 | 151.7 | 69043 | 2557 |
MMU26-4 | 750 | 540 | 10 | 178.3 | 105 | 140 | 69190 | 2562 |
MMU27-1 | 600 | 500 | 11.5 | 230.6 | 108.6 | 181 | 67348 | 2693 |
MMU27-2 | 600 | 420 | 15 | 296.8 | 139.8 | 233 | 57625 | 2745 |
MMU28-1 | 600 | 500 | 12 | 244.8 | 115.3 | 192.2 | 70976 | 2840 |
MMU28-2 | 600 | 480 | 13 | 265.1 | 124.9 | 208.1 | 67764 | 2823 |
MMU28-3 | 600 | 560 | 10.2 | 206.8 | 97.4 | 162.3 | 75158 | 2683 |
MMU28-4 | 600 | 565 | 10.5 | 216.1 | 101.8 | 169.6 | 80813 | 2860 |
MMU28-5 | 600 | 590 | 10.8 | 225.6 | 106.2 | 177.1 | 89362 | 3029 |
MMU30-1 | 500 | 500 | 13 | 299.6 | 117.6 | 235.2 | 75459 | 3018 |
MMU32-1 | 600 | 452 | 14 | 244 | 114.9 | 191.5 | 72320 | 3200 |
MMU32-2 | 600 | 515 | 14 | 293.9 | 138.4 | 230.7 | 82664 | 3211 |
MMU32-3 | 750 | 645 | 11 | 207.5 | 122.2 | 162.9 | 102790 | 3186 |
MMU32-4 | 700 | 560 | 12 | 235.7 | 129.5 | 185 | 90815 | 3245 |
MMU32-5 | 670 | 520 | 14 | 275.4 | 144.8 | 216.2 | 82566 | 3175 |
MMU32-6 | 600 | 595 | 11.2 | 233.4 | 109.9 | 183.2 | 91276 | 3068 |
MMU32-7 | 600 | 600 | 11.5 | 242.3 | 114.1 | 190.2 | 96141 | 3204 |
MMU32-8 | 600 | 605 | 11.8 | 251.3 | 118.4 | 197.3 | 102098 | 3375 |
MMU35-1 | 700 | 560 | 13 | 261.3 | 143.6 | 205.1 | 97765 | 3492 |
MMU35-2 | 750 | 608 | 12 | 231.2 | 136.1 | 181.5 | 105070 | 3456 |
MMU37-1 | 750 | 610 | 13 | 256.4 | 151 | 201.3 | 114296 | 3746 |
MMU37-2 | 700 | 600 | 13.5 | 268.9 | 147.8 | 211.1 | 111822 | 3730 |
MMU40-1 | 750 | 610 | 14 | 278.3 | 163.9 | 218.5 | 122670 | 4021 |
MMU40-2 | 700 | 580 | 15 | 304.6 | 167.4 | 239.1 | 115719 | 3990 |
MMU43-1 | 750 | 610 | 15 | 300.6 | 177 | 236 | 132280 | 4338 |
MMU43-2 | 750 | 615 | 16 | 316.6 | 186.4 | 248.5 | 133633 | 4345 |
MMU46-1 | 750 | 630 | 16 | 327 | 192.5 | 256.7 | 145784 | 4628 |
